Offers a choice of cables for users while powering the system at an advantageous voltage. The low-profile black cables facilitate cable management, reduce clutter, and increase airflow inside the case.
Description
Specifications

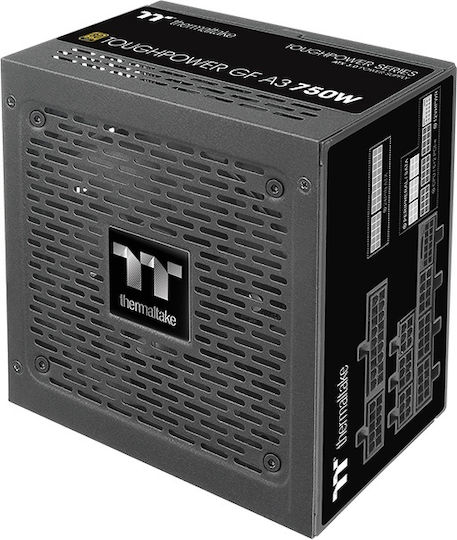

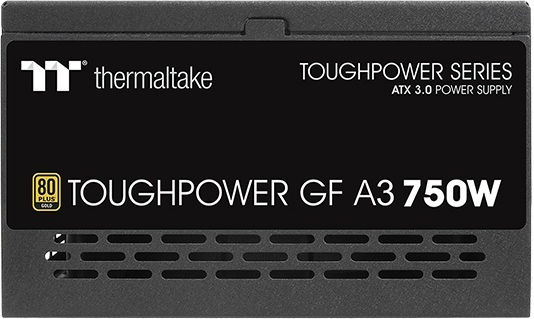

For full support of next-generation hardware, the Toughpower GF A3 Gold series is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connection. The GF A3 Gold series provides 80 PLUS Gold efficiency, offering stability, durability, and reliability.
80 Plus Gold Certification
Offers a choice of cables for users while powering the system at an advantageous voltage. The low-profile black cables facilitate cable management, reduce clutter, and increase airflow inside the case.
Intel ATX 3.0 Compatibility
The Toughpower GF A3 Gold series is fully compliant with Intel ATX 3.0 specifications, supporting up to 200% power excursion, achieving 60% efficiency at low load, and meeting the required power supply timing standards.
PCIe Gen 5.0 Ready
The Toughpower GF A3 Gold series features a 16pin connector to deliver powerful and stable performance, allowing the power supply to natively support next-generation GPUs.
The power indicated on the 12VHPWR connector is the recommended power. (Reference to Intel's design guideline)
The native PCIe 16 PIN (12VHPWR) connector of the GF A3 850W can deliver up to 450W for PCIe 5.0 graphics cards.
Silent Operation

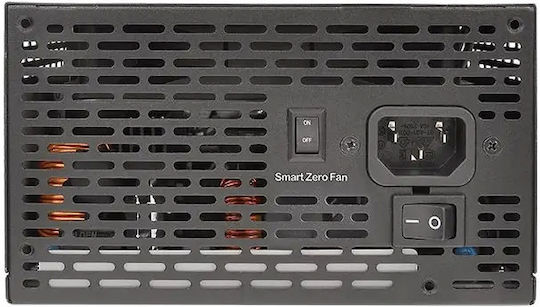

It features a 120 mm fan with fluid bearings for excellent airflow. Additionally, the Smart Zero fan will not spin until the load exceeds 40% of the power supply, minimizing unwanted noise.
Japanese-Made Capacitors
The high-quality Japanese main electrolytic capacitor significantly improves the durability of power supplies and ensures the stability and reliability of the Toughpower GF A3 series.
Fully Modular Design
Offers a choice of cables for users while powering the system at an advantageous voltage. The low-profile black cables facilitate cable management, reduce clutter, and increase airflow inside the case.

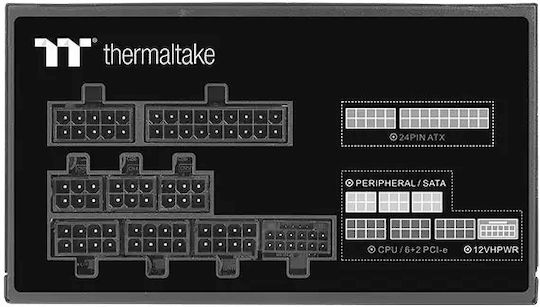

Connections
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) CPU power connectors
- 4x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in conjunction with your PC's capabilities
- 8x SATA power connectors for SSD or HDD hard drives
- 4x Molex 4-pin connectors for connecting additional peripherals
- 1x Floppy connector
System Protection
Protects your PC from over power (OPP), over voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), and short circuit (SCP).
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 20A
- Line Current +5 V: 20A
- Line Current +12 V: 62.5A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
Product Guides
Dimensions
- Power
- 750 W
- Size
- ATX, -
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
