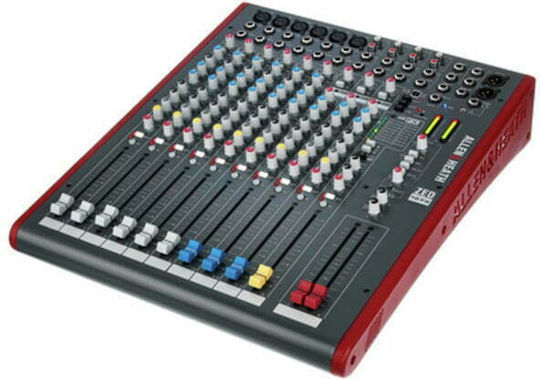

The Allen & Heath ZED-12FX analogue mixer combines 6 mono channels with 3 stereo channels for connecting microphones and additional audio sources. It includes 16 built-in time-based effects and configurable stereo USB audio input and output for connecting to a computer.
The mono channels feature DuoPre preamps with a wide gain range, a 3-band MusiQ equaliser, channel inserts and stereo positioning via pan. The mixer has two pre-fader and one post-fader auxiliary sends, as well as a built-in effects send. Illuminated mute and PFL switches, peak indicators and 100 mm ALPS faders make operation easy.
- Type: Analogue
- Channels: 12
- Mono channels: 6
- Stereo channels: 3
- XLR inputs: 6
- Microphone connections: Neutrik XLR
- 1/4" jacks: Neutrik
- Mono channel equaliser: 3-band MusiQ
- Stereo channel equaliser: 2-band
- Preamp: DuoPre with a wide gain range
- Channel insert: Yes
- Auxiliary sends: 2 pre-fader and 1 post-fader
- Built-in effects send: 1
- Effects: 16 built-in time-based effects
- USB connection: Configurable stereo audio input and output
- Stereo returns and playback: Yes
- Input level control: On all inputs
- Level meters: 12-segment
- Aux 1 and 2 operation: Mono or stereo
- Headphone output: Yes
- Monitor output: Yes
- Alternative stereo output source: Yes
- Phantom power: Yes
- Dimensions: 98 × 385 × 465 mm
Dimensions
- Type
- Console
- Type
- Analog
- Active
- No
- Channels
- 12
- Phantom Power
- Yes
- Effects
- Yes
- Length
- 385 mm
- Height
- 98 mm
- Length
- 465 mm
Connectivity
- USB (for PC)
- Yes
- XLR Inputs
- 6
- Bluetooth
- No
- Headphones
- Yes
- Ethernet
- No
- RCA
- Yes
