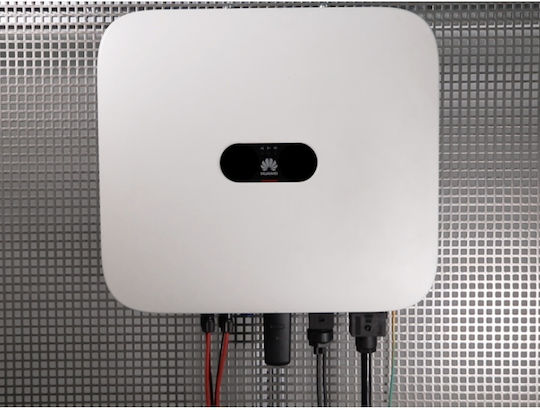

This solar inverter SUN2000 12KTL-M5 by Huawei is designed to convert the energy collected from solar panels into electrical energy.

Features:

• Maximum efficiency: 98.4% or 97.9% according to European standards
• Maximum recommended power: 18,000 W
• Two MPP trackers
• Maximum input voltage: 1100 V
• Connection to the grid via a three-phase system
• Power supply capacity of 12,000 W at voltages 220 Vac / 380 Vac, 230 Vac / 400 Vac or 239.6 Vac / 415 Vac
• Built-in protections: isolation protection, DC reverse polarity protection, fault detection in series, AC overload protection
• Control via Wi-Fi or RS485
• Weight: 21 kg
• Dimensions: 546 x 460 x 228 mm
• Protection rating: IP66
• Complies with standards EN/IEC 62109-1, EN/IEC 62109-2 for safety
• Network compliance: G99, EN 50549 and CEI 0-21

General Specifications:

• Operating temperature: -25 ~ +60°C
• Humidity: 0% RH ~ 100% RH
• Maximum operating altitude: 0 ~ 4,000 m
• Heat management: smart cooling
• Indicators: LED
• Communication: RS485; WLAN/Ethernet via Smart Dongle
• Compatibility with optimizers
