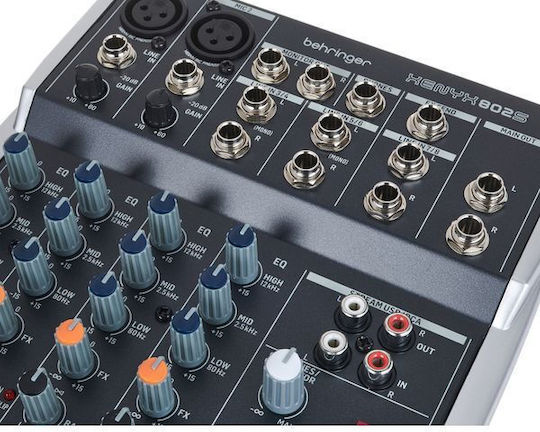

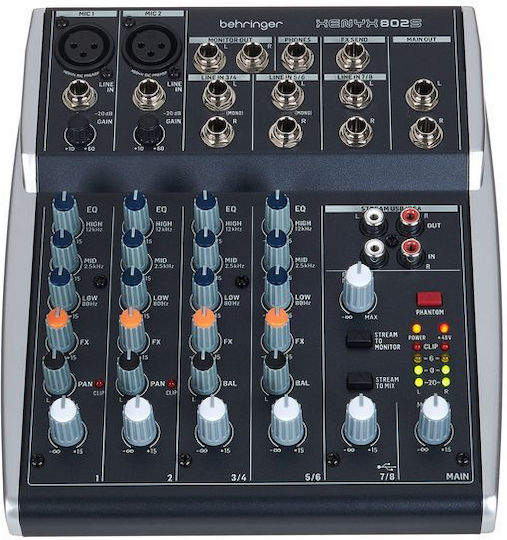

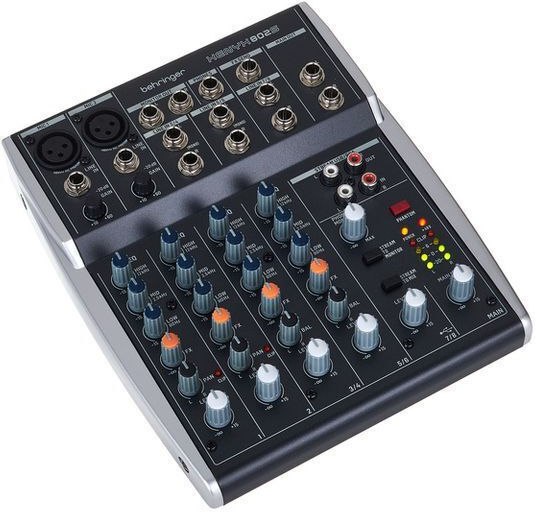

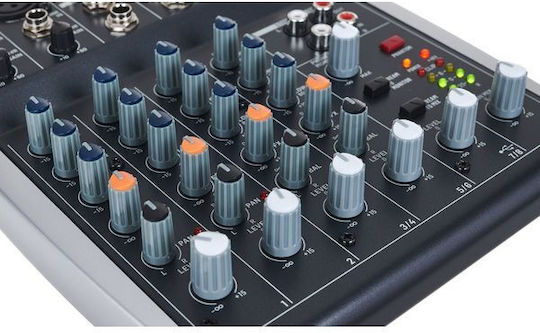

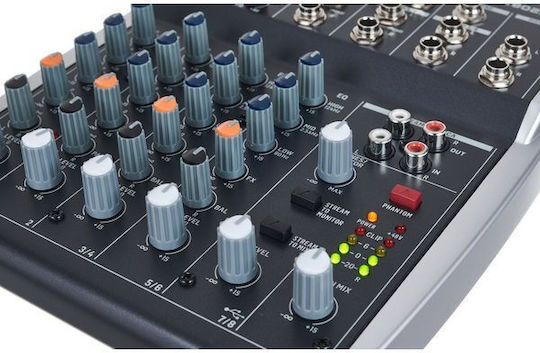

The Behringer Xenyx 802S analog mixer combines 8 channels with a USB-B interface for audio transmission via USB. The two XLR microphone inputs feature a 3-band equalizer, while three 6.3 mm stereo line inputs also have a 3-band equalizer. It provides 48 V phantom power and a 6.3 mm FX send output.
Connections include two 6.3 mm mono line inputs, monitor and master outputs, a 6.3 mm headphone output, and RCA Streaming/2Track inputs/outputs. It is powered by an external power supply.
- Type: Analog
- Channels: 8

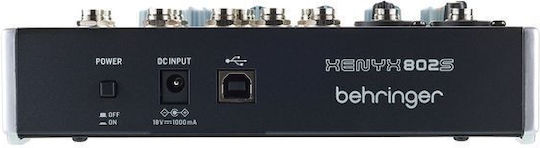

- USB connection: USB-B
- Microphone inputs: 2 XLR
- Line inputs: 2 mono 6.3 mm and 3 stereo 6.3 mm
- Equalizer: 3-band on the microphone inputs and stereo line inputs
- Phantom power: 48 V
- FX send output: 6.3 mm
- Monitor output: Unbalanced, 6.3 mm
- Main output: Unbalanced, 6.3 mm
- Streaming/2Track connections: RCA
- Headphone output: Stereo, 6.3 mm

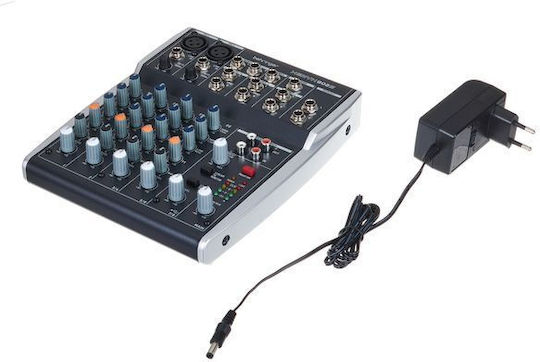

- Power supply: External power supply
- Dimensions: 189 × 220 × 47 mm
- Weight: 1.6 kg
Dimensions
- Type
- Console
- Type
- Analog
- Active
- No
- Channels
- 8
- Phantom Power
- Yes
- Effects
- No
- Length
- 189 mm
- Height
- 47 mm
- Length
- 220 mm
Connectivity
- USB (for PC)
- Yes
- XLR Inputs
- 2
- Bluetooth
- No
- Headphones
- No
- Ethernet
- No
- RCA
- Yes
