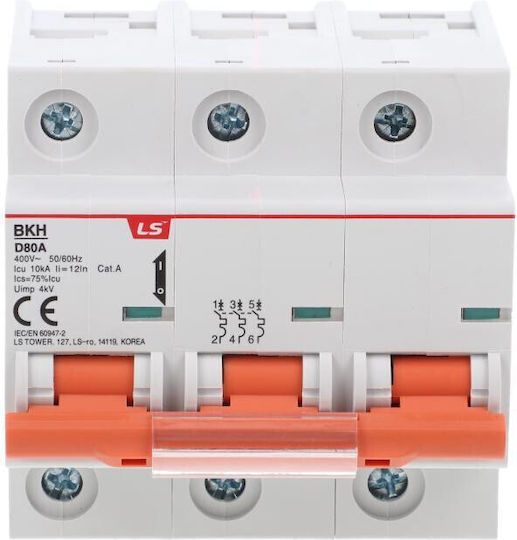

LS Automatic Circuit Breaker 80A Triple-pole AC 03.018.0356
Automatic Circuit Breaker

LS Automatic Circuit Breaker 80A Triple-pole AC 03.018.0356

The LS BKH 3P D80A miniature circuit breaker protects electrical installations from overloads and short circuits. The D tripping curve is suitable for circuits with high inrush currents, such as those...

The LS BKH 3P D80A miniature circuit breaker protects electrical installations from overloads and short circuits. The D tripping curve is suitable for circuits with high inrush currents, such as those found in industrial and commercial installations.

  • Number of poles: 3
  • Rated current: 80 A
  • Current type: AC
  • Operating curve: D
  • Degree of protection: IP20
  • ...
See Description & Specifications See Description & Specifications
91 04 €
Delivery by Mon, 16 Nov
14,00 €   shipping cost
Sent from Greece
From Galazoula 5.0 (5)
5.0 (5 reviews)
Greece
1 piece
See Electrical Panel Supplies on the page of Galazoula

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The LS BKH 3P D80A miniature circuit breaker protects electrical installations from overloads and short circuits. The D tripping curve is suitable for circuits with high inrush currents, such as those found in industrial and commercial installations.

  • Number of poles: 3
  • Rated current: 80 A
  • Current type: AC
  • Operating curve: D
  • Degree of protection: IP20
  • Frequency: 50 Hz
  • Rated voltage: 400 V
  • Short-circuit breaking capacity: 10 kA
  • Installation depth: 45 mm
  • Width: 4.5 modules

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
80 A
Operating Curve
Curve D

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve D

It is used for heavy loads with high starting peaks, such as large motors and transformers.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
