Johansson 7724L2 VHF-UHF Line Amplifier Satellite
Satellite Accessories

Johansson 7724L2 VHF-UHF Line Amplifier Satellite

The Johansson 7724L2 line amplifier amplifies and distributes VHF/UHF signals to four outputs via a single input covering the 40–320 MHz and 470–694 MHz bands. Its built-in LTE/5G filter suppresses...

The Johansson 7724L2 line amplifier amplifies and distributes VHF/UHF signals to four outputs via a single input covering the 40–320 MHz and 470–694 MHz bands. Its built-in LTE/5G filter suppresses interference from mobile networks above the TV UHF band. The gain for each band can be adjusted independently using potentiometers.

The 24 VDC remote power supply...

See full description See full description
29 00 €
Delivery by Thu, 05 Nov
14,00 €   shipping cost
Sent from Greece
From Lynk.gr 4.9 (10)
4.9 (10 reviews)
Greece
5+ pieces
See Satellite Reception on the page of Lynk.gr

Learn more about invoicing
Product report

Description

Description

The Johansson 7724L2 line amplifier amplifies and distributes VHF/UHF signals to four outputs via a single input covering the 40–320 MHz and 470–694 MHz bands. Its built-in LTE/5G filter suppresses interference from mobile networks above the TV UHF band. The gain for each band can be adjusted independently using potentiometers.

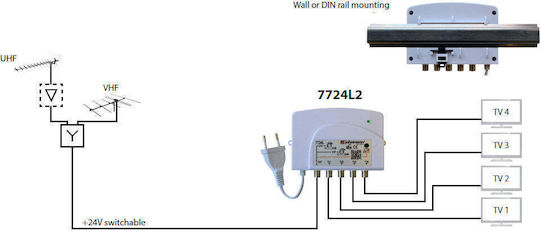

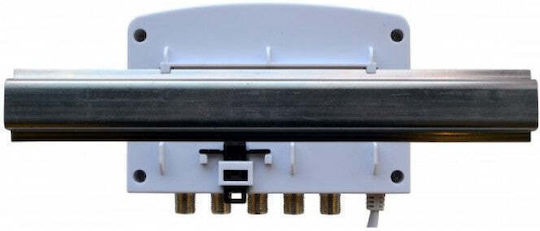

The 24 VDC remote power supply can power a masthead amplifier via coaxial cable. An LED indicates the power status, and the device can be mounted on a wall or DIN rail.

  • Type: Line amplifier
  • Inputs: 1
  • Outputs: 4
  • Frequency range: 40–320 MHz and 470–694 MHz
  • Adjustable VHF gain: 13–28 dB
  • Adjustable UHF gain: 15–25 dB
  • LTE/5G filter: Built-in
  • Noise figure: 3 dB (typical)
  • Maximum output level: 102 dBμV
  • Input/output return loss: 10 dB
  • Isolation between outputs: 15 dB
  • Remote power supply: 24 V / 55 mA
  • Power supply: 230 V~ / 6.9 VA
  • Power indicator: LED
  • Mounting: Wall or DIN rail
  • Package contents: Line amplifier, safety instructions
