Hikvision Switch for CCTV Systems DS-3E1106HP-EI
CCTV Accessories

Hikvision Switch for CCTV Systems DS-3E1106HP-EI

The Hikvision DS-3E1106HP-EI switch expands a CCTV system network with four 10/100 Mbps PoE ports and two 100 Mbps RJ45 network ports. It supports IEEE 802.3af/at/bt standards, network topology...

The Hikvision DS-3E1106HP-EI switch expands a CCTV system network with four 10/100 Mbps PoE ports and two 100 Mbps RJ45 network ports. It supports IEEE 802.3af/at/bt standards, network topology management, and alarm notifications. The PoE ports feature 6 kV surge protection, while long-distance transmission reaches up to 300 m; in Extend Mode, AF/AT cameras...

See Description & Specifications See Description & Specifications
40 20 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Computer-data 4.8 (19)
4.8 (19 reviews)
Greece
7 pieces
See CCTV Systems on the page of Computer-data

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
Product report

Description & Specifications

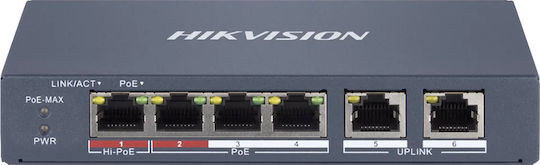

The Hikvision DS-3E1106HP-EI switch expands a CCTV system network with four 10/100 Mbps PoE ports and two 100 Mbps RJ45 network ports. It supports IEEE 802.3af/at/bt standards, network topology management, and alarm notifications. The PoE ports feature 6 kV surge protection, while long-distance transmission reaches up to 300 m; in Extend Mode, AF/AT cameras can be connected at distances of up to 300 m.

Port 1 provides up to 60 W, and ports 2–4 provide up to 30 W per port, with a total PoE power budget of 60 W. The metal enclosure is rated IP40, and the switch can be mounted on a wall or placed on a desk. Management features include speed and flow control settings, remote upgrades, factory reset, log viewing, and basic network settings.

  • PoE ports: 4 × 100 Mbps RJ45
  • Network ports: 2 × 100 Mbps RJ45
  • PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  • Power per port: Port 1: 60 W, ports 2–4: 30 W
  • Total PoE power: 60 W
  • PoE port protection: 6 kV surge protection
  • Maximum transmission distance: Up to 300 m
  • Forwarding mode: Store-and-forward
  • MAC address table: 2 K
  • Switching capacity: 1.2 Gbps
  • Packet forwarding rate: 0.8928 Mpps
  • Internal cache: 768 Kbits
  • Enclosure material: Metal
  • Protection rating: IP40
  • Installation: Wall- or desk-mounted

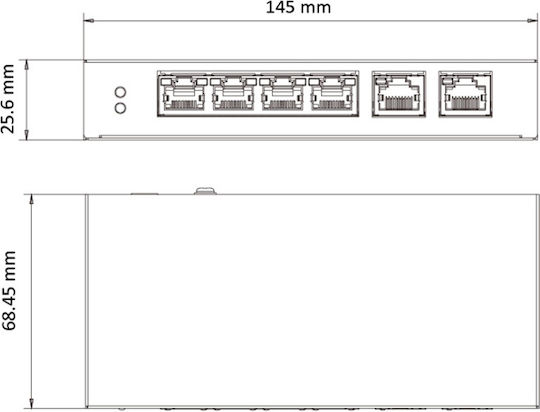

  • Dimensions: 145 × 25.6 × 68.45 mm
  • Weight: 0.245 kg
  • Operating temperature: -10 °C to 55 °C
  • Operating humidity: 5% to 95%, non-condensing
  • Power supply: 48 V DC, 1.35 A
  • Maximum power consumption: 65 W
  • Idle power consumption: 2 W

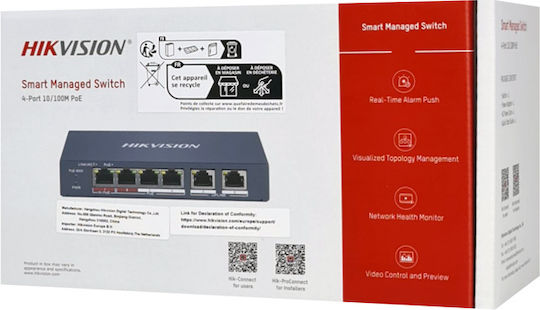

  • Package contents: Switch, power adapter, AC power cord, quick start guide
