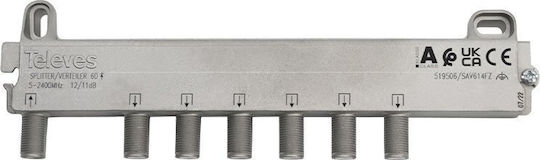

The Televes 519506 is an ALL-BAND 6-output splitter, made of Zamak metal alloy, with DC pass from the Outputs to the Input. It features all F connections on one side for easy wiring with F plugs, as well as a 10-degree tilt during installation, to facilitate screwing the F plugs onto the splitter.

Special features include:

• Class A shielding, constructed from Zamak metal alloy for electromagnetic shielding and anti-corrosive protection.
• Easy screwing of F plugs, thanks to the 10-degree tilt during installation, which also allows cable routing behind the F connections.

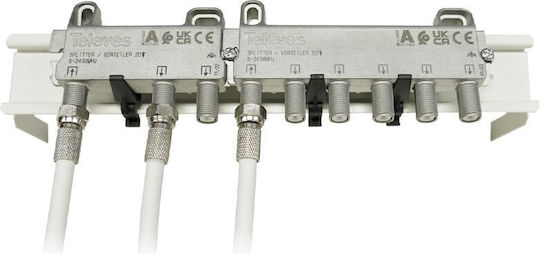

• Splitters in this series can be connected to each other at the grounding point, for space-saving and aesthetic purposes.
• Improved performance across the frequency curve, for lower signal loss.

Technical specifications:

• Frequency Range MHz: 5 ... 2400
• Output Splits: 6
• Inputs/Bands: TERRESTRIAL & SATELLITE
• Through Losses up to: dB 12 (Terrestrial) & 11 (Satellite)
• Isolation between outputs: dB >20 (Terrestrial), >20 (Satellite)
• DC pass from Outputs to Input (maximum): Vdc 24 / mA 350
• Dimensions W / H / D: 176 / 59 / 18 millimeters
