The Televes 519505 is an ALL-BAND 5 Output splitter, made of Zamak metal alloy, with DC pass from the Outputs to the Input. It features F connections all on one side for easy cable connection with F plugs, as well as a 10-degree tilt during installation, facilitating the screwing of F plugs onto the splitter.

The signal attenuation during passage through the splitter is very low, thanks to the construction of its circuit with micro-materials, improving its performance, while its Zamak alloy shell provides Class A electromagnetic shielding. It is designed for installation indoors but can also be mounted on a cabinet rail. In outdoor environments, it can be installed inside a box.

Special Features:

• Class A shielding. Constructed from Zamak metal alloy for electromagnetic shielding and corrosion resistance.
• Easy screwing of F plugs, thanks to the 10-degree tilt during installation. It also allows for cable routing behind the F connections.

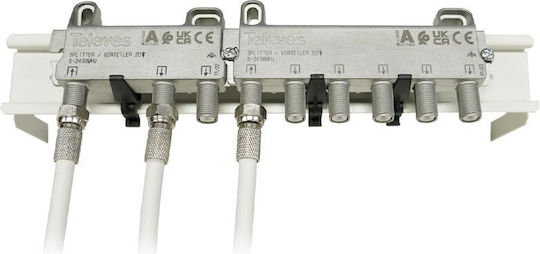

• Splitters of this series can be connected together at the grounding point, saving space and improving aesthetics, and allowing for a single grounding point throughout their array.
• Enhanced performance across the frequency curve, resulting in lower signal losses.

Technical Specifications:

• Frequency Range MHz: 5 ... 2400
• Output Splits: 5
• Inputs/Bands: TERRESTRIAL & SATELLITE
• Pass Losses up to: dB 11 (Terrestrial) & 10 (Satellite)
• Isolation between outputs: dB >20 (Terrestrial), >20 (Satellite)
• DC pass from Outputs to Input (maximum): Vdc 24 / mA 350
• Dimensions H / W / D : 109 / 59 / 18 mm
