Transceivers / SFP Modules

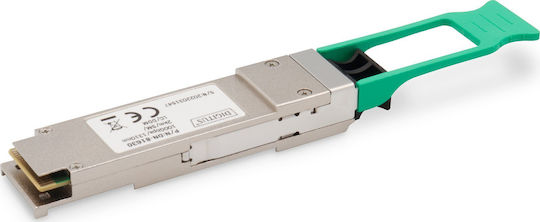

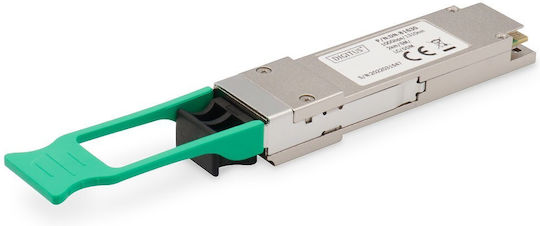

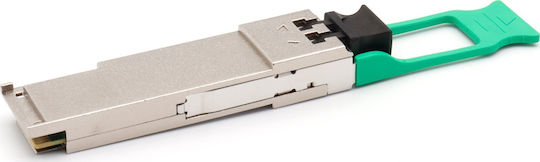

Digitus Transceiver DN-81630 QSFP28 100Gbps 1τμχ

The Digitus DN-81630 optical transceiver is designed for 100 Gigabit Ethernet applications and supports the IEEE 802.3bm 100GBASE-SR4 standard. It uses an 850 nm VCSEL laser array and a four-channel...

The Digitus DN-81630 optical transceiver is designed for 100 Gigabit Ethernet applications and supports the IEEE 802.3bm 100GBASE-SR4 standard. It uses an 850 nm VCSEL laser array and a four-channel full-duplex design, with a data rate of up to 26 Gbps per channel.

It supports transmission distances of up to 70 m over OM3 multimode fiber and up to 100 m over...

See full description See full description
307 67 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Visionstudio 4.8 (66)

Learn more about invoicing

Description

Description

The Digitus DN-81630 optical transceiver is designed for 100 Gigabit Ethernet applications and supports the IEEE 802.3bm 100GBASE-SR4 standard. It uses an 850 nm VCSEL laser array and a four-channel full-duplex design, with a data rate of up to 26 Gbps per channel.

It supports transmission distances of up to 70 m over OM3 multimode fiber and up to 100 m over OM4. Power consumption is less than 3.5 W, and the operating temperature range is 0 °C to +70 °C.

  • Type: Optical transceiver
  • Form factor: QSFP28
  • Data rate: 100 Gbps
  • Channels: 4
  • Data rate per channel: Up to 26 Gbps
  • Standard: IEEE 802.3bm 100GBASE-SR4
  • Optical technology: VCSEL laser
  • Wavelength: 850 nm
  • Transmission distance: Up to 70 m with OM3 and up to 100 m with OM4
  • Power consumption: Less than 3.5 W
  • Operating temperature: 0 °C to +70 °C
  • Connector: MPO/MT
  • Quantity: 1

Manufacturer

See full description

Specifications

Specifications

Form Factor
QSFP28
Data Transfer Speed
100 Gbps
Transmission Media Type
-
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Digitus DN-81630 optical transceiver is designed for 100 Gigabit Ethernet applications and supports the IEEE 802.3bm 100GBASE-SR4 standard. It uses an 850 nm VCSEL laser array and a four-channel full-duplex design, with a data rate of up to 26 Gbps per channel.

It supports transmission distances of up to 70 m over OM3 multimode fiber and up to 100 m over OM4. Power consumption is less than 3.5 W, and the operating temperature range is 0 °C to +70 °C.

  • Type: Optical transceiver
  • Form factor: QSFP28
  • Data rate: 100 Gbps
  • Channels: 4
  • Data rate per channel: Up to 26 Gbps
  • Standard: IEEE 802.3bm 100GBASE-SR4
  • Optical technology: VCSEL laser
  • Wavelength: 850 nm
  • Transmission distance: Up to 70 m with OM3 and up to 100 m with OM4
  • Power consumption: Less than 3.5 W
  • Operating temperature: 0 °C to +70 °C
  • Connector: MPO/MT
  • Quantity: 1

Manufacturer

Form Factor
QSFP28
Data Transfer Speed
100 Gbps
Transmission Media Type
-
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
