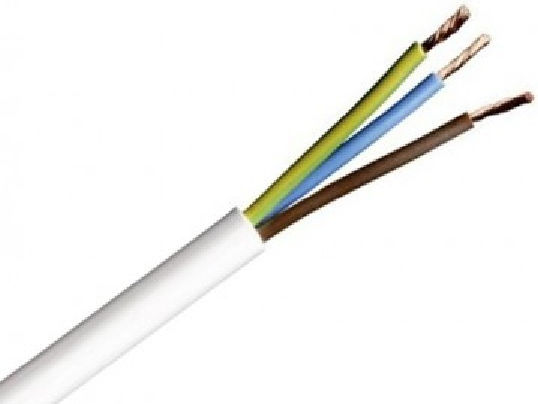

Nexans Power Cord with Cable Properties 3x4mm² in White Colour 1m Flexible
Power Cords

Nexans Power Cord with Cable Properties 3x4mm² in White Colour 1m Flexible

Flexible cable 3 x 4 mm² PVC HO5VV-F (NΥΛ)

Features:

  • Flexible cables with PVC insulation and sheath
  • Nominal voltage 300/300 V (HO3VV-F) and 300/500 V (HO5VV-F)
  • According to the specification ELOT...

Flexible cable 3 x 4 mm² PVC HO5VV-F (NΥΛ)

Features:

  • Flexible cables with PVC insulation and sheath
  • Nominal voltage 300/300 V (HO3VV-F) and 300/500 V (HO5VV-F)
  • According to the specification ELOT 563.5 (HD 21.5)
  • Highly stranded copper conductor
  • PVC insulation
  • PVC sheath

Description:

  • Corresponding NΥLHY
  • H03VV-F 2x0.5: Weight 39 kg/km, Diameter 5.5 mm,...
See full description See full description

Cable properties

  1. 3x4 mm²

    from 3,22 €

  2. 1x1 mm²

    from 23,14 €

Length

  1. 1 m

    from 3,22 €

  2. 100 m

    from 23,14 €

Review the product
Product report

Description

Description

Flexible cable 3 x 4 mm² PVC HO5VV-F (NΥΛ)

Features:

  • Flexible cables with PVC insulation and sheath
  • Nominal voltage 300/300 V (HO3VV-F) and 300/500 V (HO5VV-F)
  • According to the specification ELOT 563.5 (HD 21.5)
  • Highly stranded copper conductor
  • PVC insulation
  • PVC sheath

Description:

  • Corresponding NΥLHY
  • H03VV-F 2x0.5: Weight 39 kg/km, Diameter 5.5 mm, Current 3 A, Resistance 39 Ω/km
  • H03VV-F 2x0.75: Weight 47 kg/km, Diameter 6 mm, Current 13 A, Resistance 26 Ω/km
  • H03VV-F 3G0.5: Weight 46 kg/km, Diameter 6 mm, Current 3 A, Resistance 39 Ω/km
  • H03VV-F 3G0.75: Weight 56 kg/km, Diameter 6.5 mm, Current 13 A, Resistance 26 Ω/km
  • H03VV-F 4G0.5: Weight 55 kg/km, Diameter 6.5 mm, Current 3 A, Resistance 39 Ω/km
  • H03VV-F 4G0.75: Weight 68 kg/km, Diameter 7 mm, Current 13 A, Resistance 26 Ω/km
  • H05VV-F 2x1: Weight 61 kg/km, Diameter 7 mm, Current 16 A, Resistance 19.5 Ω/km
  • H05VV-F 2x1.5: Weight 82 kg/km, Diameter 8 mm, Current 21 A, Resistance 13.3 Ω/km
  • H05VV-F 2x2.5: Weight 125 kg/km, Diameter 9 mm, Current 28 A, Resistance 7.98 Ω/km
  • H05VV-F 3G1: Weight 75 kg/km, Diameter 7 mm, Current 16 A, Resistance 19.5 Ω/km
  • H05VV-F 3G1.5: Weight 105 kg/km, Diameter 9 mm, Current 21 A, Resistance 13.3 Ω/km
  • H05VV-F 3G2.5: Weight 156 kg/km, Diameter 10 mm, Current 26 A, Resistance 7.98 Ω/km
  • H05VV-F 3G4: Weight 205 kg/km, Diameter 11 mm, Current 36 A, Resistance 4.95 Ω/km
  • H05VV-F 4G1: Weight 92 kg/km, Diameter 8 mm, Current 14 A, Resistance 19.5 Ω/km
  • H05VV-F 4G1.5: Weight 129 kg/km, Diameter 9 mm, Current 19 A, Resistance 13.3 Ω/km
  • H05VV-F 4G2.5: Weight 191 kg/km, Diameter 11 mm, Current 26 A, Resistance 7.98 Ω/km
  • H05VV-F 4G4: Weight 248 kg/km, Diameter 12.5 mm, Current 36 A, Resistance 4.95 Ω/km
  • H05VV-F 5G1: Weight 110 kg/km, Diameter 8.5 mm, Current 14 A, Resistance 19.5 Ω/km
  • H05VV-F 5G1.5: Weight 159 kg/km, Diameter 11 mm, Current 19 A, Resistance 13.3 Ω/km
  • H05VV-F 5G2.5: Weight 235 kg/km, Diameter 12 mm, Current 26 A, Resistance 7.98 Ω/km
  • H05VV-F 5G4: Weight 320 kg/km, Diameter 14 mm, Current 36 A, Resistance 4.95 Ω/km

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Cable Properties
3x4 mm²
Type
-
Flexible
Yes
With Plug
No
With Switch
No
Colour
White
Length
1 m

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Flexible cable 3 x 4 mm² PVC HO5VV-F (NΥΛ)

Features:

  • Flexible cables with PVC insulation and sheath
  • Nominal voltage 300/300 V (HO3VV-F) and 300/500 V (HO5VV-F)
  • According to the specification ELOT 563.5 (HD 21.5)
  • Highly stranded copper conductor
  • PVC insulation
  • PVC sheath

Description:

  • Corresponding NΥLHY
  • H03VV-F 2x0.5: Weight 39 kg/km, Diameter 5.5 mm, Current 3 A, Resistance 39 Ω/km
  • H03VV-F 2x0.75: Weight 47 kg/km, Diameter 6 mm, Current 13 A, Resistance 26 Ω/km
  • H03VV-F 3G0.5: Weight 46 kg/km, Diameter 6 mm, Current 3 A, Resistance 39 Ω/km
  • H03VV-F 3G0.75: Weight 56 kg/km, Diameter 6.5 mm, Current 13 A, Resistance 26 Ω/km
  • H03VV-F 4G0.5: Weight 55 kg/km, Diameter 6.5 mm, Current 3 A, Resistance 39 Ω/km
  • H03VV-F 4G0.75: Weight 68 kg/km, Diameter 7 mm, Current 13 A, Resistance 26 Ω/km
  • H05VV-F 2x1: Weight 61 kg/km, Diameter 7 mm, Current 16 A, Resistance 19.5 Ω/km
  • H05VV-F 2x1.5: Weight 82 kg/km, Diameter 8 mm, Current 21 A, Resistance 13.3 Ω/km
  • H05VV-F 2x2.5: Weight 125 kg/km, Diameter 9 mm, Current 28 A, Resistance 7.98 Ω/km
  • H05VV-F 3G1: Weight 75 kg/km, Diameter 7 mm, Current 16 A, Resistance 19.5 Ω/km
  • H05VV-F 3G1.5: Weight 105 kg/km, Diameter 9 mm, Current 21 A, Resistance 13.3 Ω/km
  • H05VV-F 3G2.5: Weight 156 kg/km, Diameter 10 mm, Current 26 A, Resistance 7.98 Ω/km
  • H05VV-F 3G4: Weight 205 kg/km, Diameter 11 mm, Current 36 A, Resistance 4.95 Ω/km
  • H05VV-F 4G1: Weight 92 kg/km, Diameter 8 mm, Current 14 A, Resistance 19.5 Ω/km
  • H05VV-F 4G1.5: Weight 129 kg/km, Diameter 9 mm, Current 19 A, Resistance 13.3 Ω/km
  • H05VV-F 4G2.5: Weight 191 kg/km, Diameter 11 mm, Current 26 A, Resistance 7.98 Ω/km
  • H05VV-F 4G4: Weight 248 kg/km, Diameter 12.5 mm, Current 36 A, Resistance 4.95 Ω/km
  • H05VV-F 5G1: Weight 110 kg/km, Diameter 8.5 mm, Current 14 A, Resistance 19.5 Ω/km
  • H05VV-F 5G1.5: Weight 159 kg/km, Diameter 11 mm, Current 19 A, Resistance 13.3 Ω/km
  • H05VV-F 5G2.5: Weight 235 kg/km, Diameter 12 mm, Current 26 A, Resistance 7.98 Ω/km
  • H05VV-F 5G4: Weight 320 kg/km, Diameter 14 mm, Current 36 A, Resistance 4.95 Ω/km

Manufacturer

Manufacturer Details

Warnings & Safety Information
Cable Properties
3x4 mm²
Type
-
Flexible
Yes
With Plug
No
With Switch
No
Colour
White
Length
1 m
