Horizontal axis wind turbine with three blades 400Watt 12V and 24V with external MPPT charging controller.

HIGH-QUALITY BLADES
The material of the blades is synthetic, made from high-strength plastic, carbon fibers, and corrosion-resistant material against UV rays. The modern blade design is aerodynamically shaped for smooth, reliable, and quiet rotor operation.

EXCELLENT WIND TURBINE PERFORMANCE
Designed with a three-phase AC stator. The external charging controller features an intelligent microprocessor for low-torque and high-power monitoring that can effectively regulate current and voltage. It increases the utilization of wind energy and annual energy production.

DOUBLE BEARING SYSTEM
This ensures more stable movement with low vibrations and low noise. It can also generate electricity at lower wind speeds.

EASY INSTALLATION
All materials needed for easy installation and maintenance are included. It can be used in combination with solar panels.

MULTIFUNCTIONAL USE
It is the ideal power system for remote homes, weather stations, communication base stations, highways. Also suitable for recreational purposes, charging batteries on boats, gazebos, chalets, or caravans.

Note: The wind turbine can charge batteries when connected to 12V or 24V. Therefore, the battery must be connected first to the charging controller before the wind turbine is connected to the charging controller.

• Rated Power: 400W
• Maximum Power: 450W
• Rated Voltage: 12V/24V
• Blade Length: 600mm
• Starting Wind Speed: 2.5m/s (2 Beaufort)
• Rated Wind Speed: 11m/s (6 Beaufort)
• Safe Wind Speed: 35m/s (12 Beaufort)
• Net Weight: 8kg

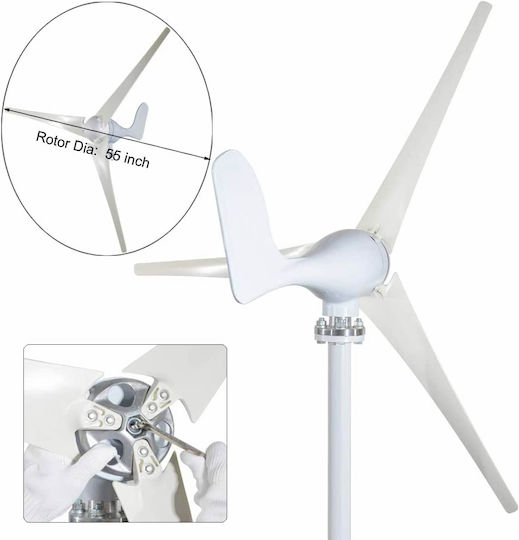

• Blade Diameter: 1.35m
• Includes external MPPT charging controller.

USAGE INSTRUCTIONS

TECHNICAL SPECIFICATIONS
