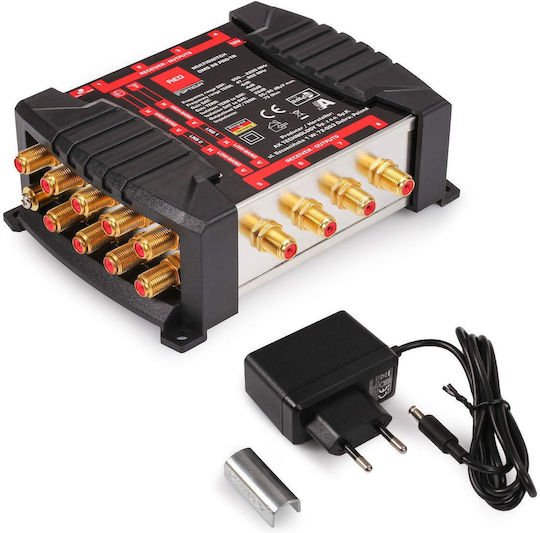

The Opticum OMS 9/8 PRO-TR multiswitch distributes signals from two satellites and terrestrial TV to 8 independent receivers or outlets, with one cable to each. Each output allows independent selection of polarisation and band, and the device is compatible with 2× Quattro LNBs.

The built-in amplifiers support signal distribution through building cabling. The terrestrial input is active and adjustable, while polarisation and band selection are controlled using 13/18 V, 22 kHz and DiSEqC 2.0. An external power supply and grounding connection are included.

• Inputs: 8 SAT and 1 terrestrial, F-type
• Outputs: 8 independent subscriber outputs, F-type
• SAT/IF range: 950–2200 MHz
• Terrestrial signal range: 47–862 MHz
• Total range: 47–2200 MHz
• SAT output level: 85 dBμV

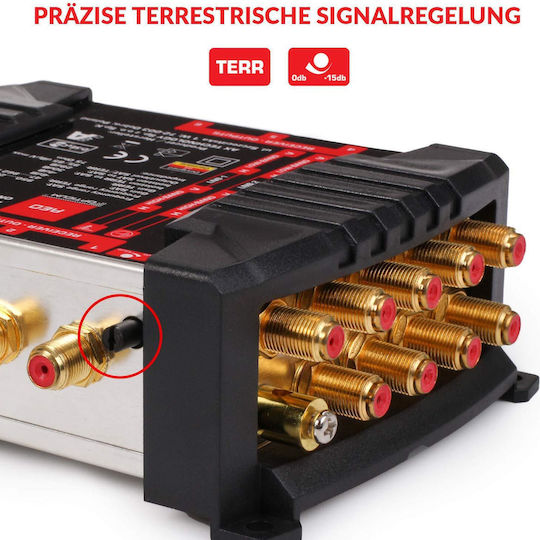

• Terrestrial input adjustment: 0 to -15 dB
• Polarisation and band control: 18 V/22 kHz, 13 V/22 kHz, 18 V, 13 V, DiSEqC 2.0
• Compatibility: 2× Quattro LNBs
• Connectors: Gold-plated F-type
• Amplifiers: Built-in

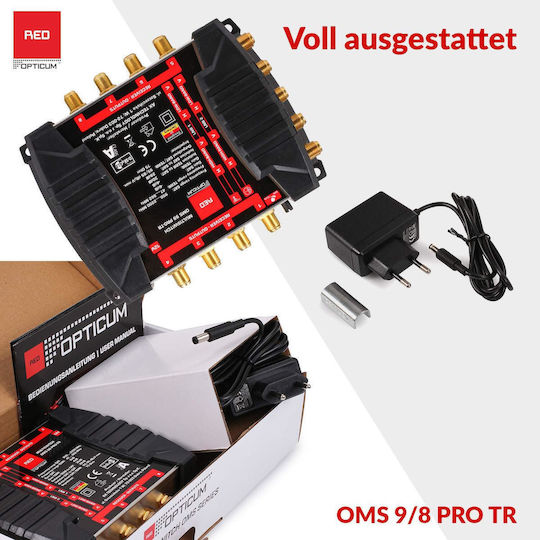

• Power supply: External power supply, included
• Grounding: Grounding connection
