Wilo Atmos Electronic 30/8 Circulator Pump Heating / Air Condition 180mm
Circulator Pumps

Wilo Atmos Electronic 30/8 Circulator Pump Heating / Air Condition 180mm Code: 12772

Water-lubricated circulator pump with threaded connection, EC motor resistant to stall current, and integrated electronic performance control

See full description

Learn more about invoicing
Product report

Description

Description

The Wilo Atmos 12772 circulator is designed for hot-water heating systems and air-conditioning applications. This wet-rotor circulator has a threaded connection, an EC motor resistant to locked-rotor current, and an integrated electronic power control. It offers constant or variable differential-pressure control settings, integrated motor protection, and a rotor-chamber venting function.

  • Type: Electronic circulator
  • Applications: Heating, air conditioning
  • Maximum head: 8 m
  • Connection diameter: 30 mm

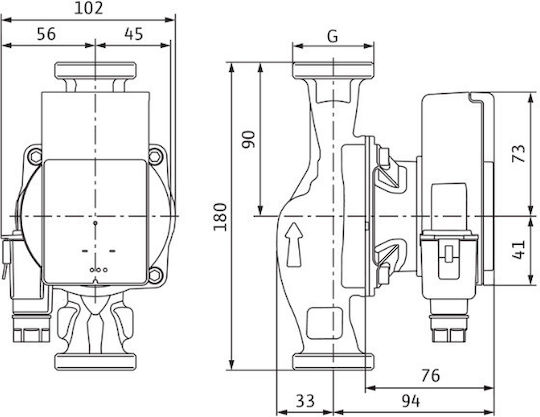

  • Length: 180 mm
  • Connection type: Threaded
  • Motor: EC, resistant to locked-rotor current
  • Power control: Integrated electronic control

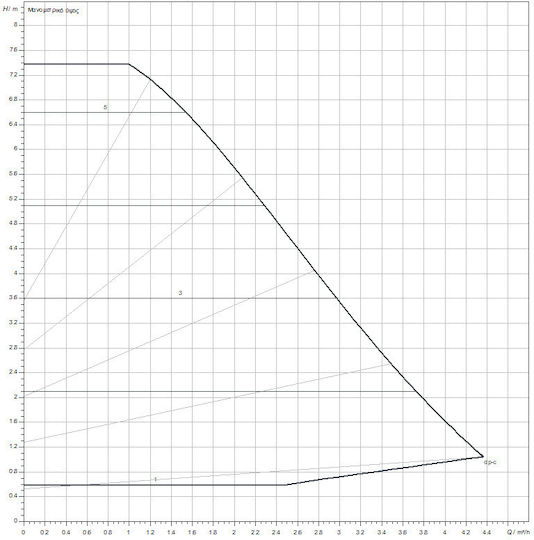

  • Control modes: Constant (Δp-c) and variable (Δp-v) differential pressure
  • Motor protection: Integrated
  • Display: LED for the setpoint and current power consumption in W
  • Function: Rotor-chamber venting

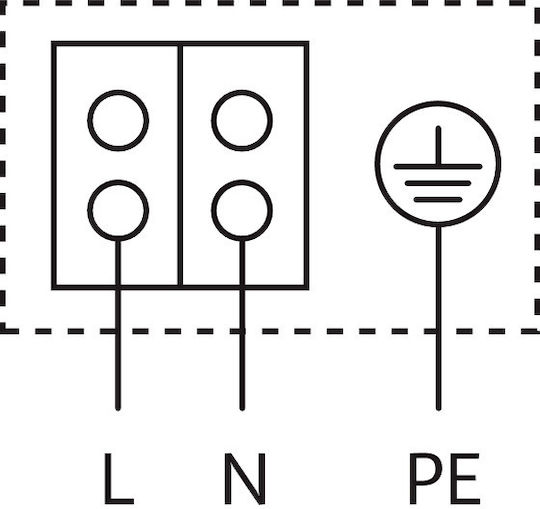

  • Electrical connection: Quick connection via Wilo plug
  • Minimum power consumption: 4 W

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
12772

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating, Air Conditioning

Application

Heating
It concerns installations of closed circuit hot and cold water.
Air Conditioning
This concerns closed circuit installations for hot and cold water.
Maximum Pressure Head (m)
8 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
30 mm
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
