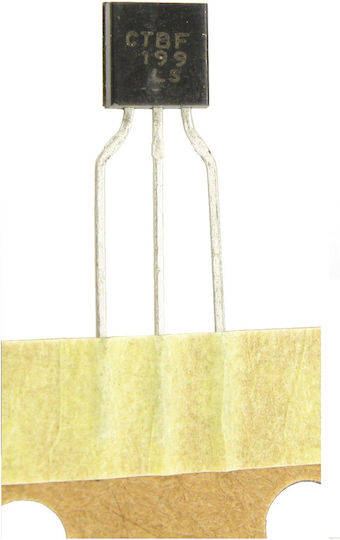

The BF199 is a specialized NPN transistor, optimized for operation in RF (Radio Frequency) circuits. It is widely used in intermediate frequency (IF) stages, local oscillators, and signal amplifiers in radio receivers and transmitters.

Technical Specifications (Specs):

• Type: NPN Silicon RF Transistor

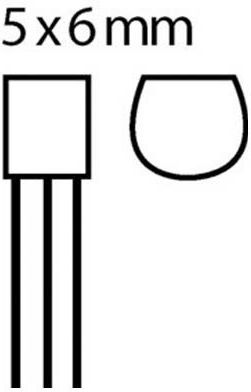

• Package: TO-92 (Plastic)
• Maximum Collector-Emitter Voltage: 25V
• Maximum Collector Current: 50mA
• Transition Frequency: 550 MHz (Excellent performance at VHF frequencies)
• Feedback Capacitance: Very low (approximately 0.5 pF)

Main Applications:

• FM/AM Radio: IF amplifiers and mixer stages
• Oscillators: Carrier wave generation in small transmitters
• VHF Amplifiers: Antenna signal pre-amplification
• Telecommunication Projects: Ideal for hobbyists building receivers or radios
