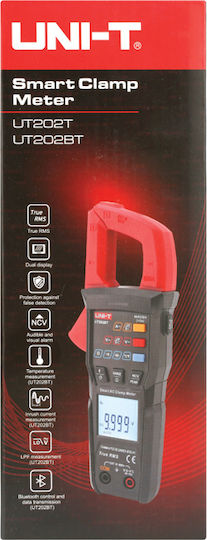

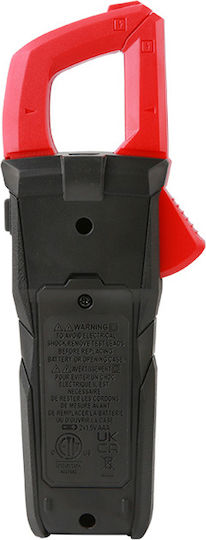

Uni-T Clamp Meter Digital 600A AC True RMS with Test Leads UT202BT

The UNI-T UT202BT digital clamp meter features:

  • Bluetooth connectivity for easy data transfer.
  • True RMS measurement with 9999 counts.
  • AC current measurement up to 600A.
  • AC/DC voltage measurement up...

The UNI-T UT202BT digital clamp meter features:

  • Bluetooth connectivity for easy data transfer.
  • True RMS measurement with 9999 counts.
  • AC current measurement up to 600A.
  • AC/DC voltage measurement up to 600V.
  • Dual display: V+HZ & A+HZ.
  • Large LCD screen with backlight.
  • Non-contact voltage (NCV) function.
  • Flashlight for easy use in dark areas.
  • Easy handling and...
See full description See full description

Description

Description

The UNI-T UT202BT digital clamp meter features:

  • Bluetooth connectivity for easy data transfer.
  • True RMS measurement with 9999 counts.
  • AC current measurement up to 600A.
  • AC/DC voltage measurement up to 600V.
  • Dual display: V+HZ & A+HZ.
  • Large LCD screen with backlight.
  • Non-contact voltage (NCV) function.
  • Flashlight for easy use in dark areas.
  • Easy handling and traditional clamp meter functions.
  • Safety category CAT III 600V.

Technical specifications:

  • DC voltage (V): 600V, +/-(0.5%+3)
  • AC voltage (V): 600V, +/-(0.8%+3)
  • AC current (A): 600A, +/-(2.5%+5)
  • Resistance (Ω): 100MΩ, +/-(0.8%+3)
  • Frequency (Hz): 40Hz~1000Hz, +/-(1.0%+5)
  • Capacitance (F): 100mF, +/-(4%+5)
  • Temperature: -40 °C ~ 1000 °C, +/-5
  • Jaw opening: 28mm
  • Dual display: Yes
  • Automatic measurement: Yes
  • Continuity: Yes
  • Peak hold: Yes
  • Low pass filter: Yes
  • Inrush current: Yes
  • Visual and audible indication: Yes
  • Low battery indication: <2.4V approximately
  • Data hold: Yes
  • Auto power off: Approximately 15 minutes
  • Flashlight: Yes
  • Bluetooth: Yes
  • Power: 2x AAA 1.5V (included)
  • Certifications: CE/UKCA/cETLus

Package contents:

  • Clamp meter
  • Carrying case
  • Probes
  • Temperature sensor
  • 2x AAA batteries
  • User manual
