Huawei Wall Mounted Three-Phase 22kW Charging Station Type 2 (02314BXL-003)

Socket Type: Type 2

Charging Capacity: 22000 W

Voltage: 400 V

Current: 32 A

Wi-Fi: Yes

Cable Protection (Cable E-Lock via app)

Residual Current Protection (RCD): Type A (30mA) + DC 6 mA integrated

...

Socket Type: Type 2

Charging Capacity: 22000 W

Voltage: 400 V

Current: 32 A

Wi-Fi: Yes

Cable Protection (Cable E-Lock via app)

Residual Current Protection (RCD): Type A (30mA) + DC 6 mA integrated

Overload Protection - IEC 61851-1

Overheating Protection

Voltage Protection (CAT II)

Temperature Range: -35C ~ +40C (32 A), -35C ~ +50C (16 A)

Dimensions: 335 x...

See full description See full description

Description

Description

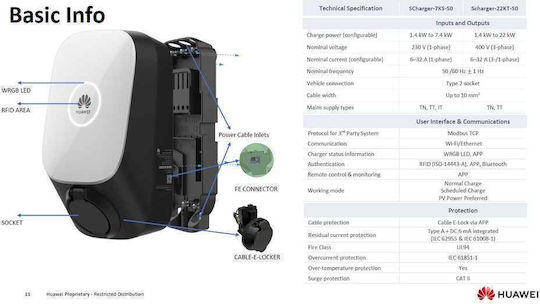

Socket Type: Type 2

Charging Capacity: 22000 W

Voltage: 400 V

Current: 32 A

Wi-Fi: Yes

Cable Protection (Cable E-Lock via app)

Residual Current Protection (RCD): Type A (30mA) + DC 6 mA integrated

Overload Protection - IEC 61851-1

Overheating Protection

Voltage Protection (CAT II)

Temperature Range: -35C ~ +40C (32 A), -35C ~ +50C (16 A)

Dimensions: 335 x 180 x 145 mm

Weight: 3.1 kg

Certifications: EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1

Protection Rating: IP54

Impact Rating: IK10

Manufacturer

See full description

Specifications

Specifications

Placement
Wall Mounted
Phase Capacity
Three-Phase
Charging Power
22 kW
Built-in Cable
No
Charging Port
Type 2

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (8)

Reviews

  1. 6
  2. 1
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1
Review this product

Reviews photos

Reviews photos
Reviews photos
Reviews photos

Reviews by our members

  • Theodoros Kos282tea
    5
    1 out of 1 members found this review helpful

    Very good!
    With the option to work with single-phase and three-phase connection.
    The app is a bit difficult
    (you need to create an account as an installer first)

    Translated from Greek ·
    Did you find this review helpful?
  • blugosi
    4
    1 out of 1 members found this review helpful

    First of all, it always charges correctly, at the kilowatts it promises, at least at the 11 kW that our cars charge at. I point this out because other chargers give us slightly fewer kilowatts, for example, the ABB gives 10.3 kW.

    It is a reliable device, it hasn't frozen even once.

    Its main negatives are that it doesn't have a screen and that the Huawei app is restrictive, as follows.

    If your phone is a company phone and has some security policy that doesn't allow installing apps outside of Google Play, you're out of luck. The app doesn't even install because you download it from the Chinese Huawei site and your phone doesn't allow it.

    Translated from Greek ·
    Did you find this review helpful?
  • noio
    1
    3 out of 4 members found this review helpful

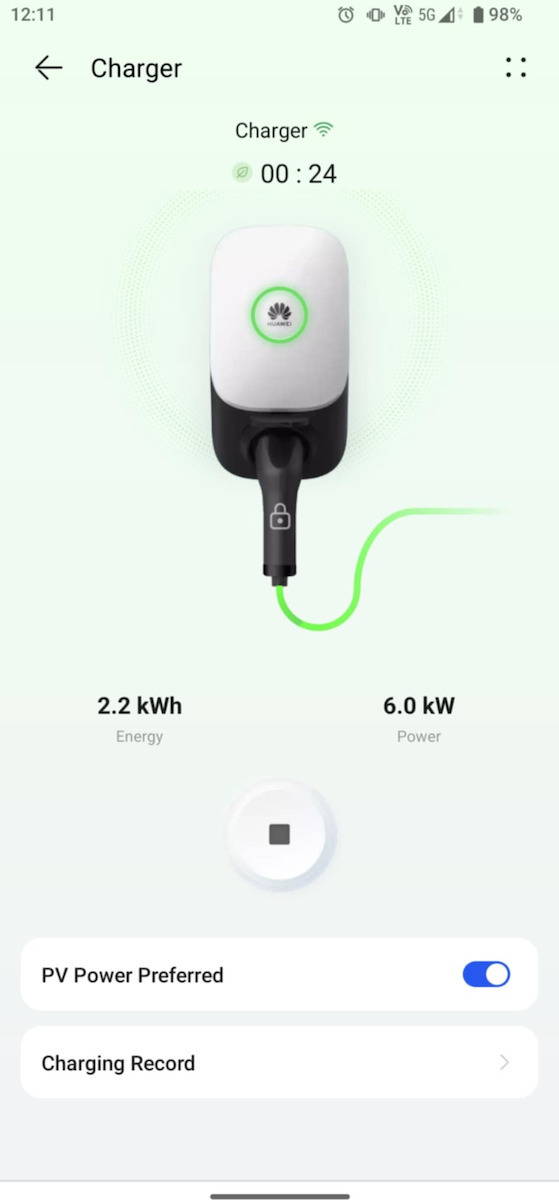

    For 4 months now, the technicians have been trying to connect and configure the application without good results. In the PV POWER PREFERRED option, it works for a few minutes and then increases the charger's power above the photovoltaic production, resulting in draining the house battery (red note on the graph). Or sometimes it operates with a time delay (blue note on the graph). Unfortunately, the technical support is unacceptable and I haven't been able to resolve this for so many months. Everyone tries to sell the product by promising features they cannot deliver. Huawei's support network is at best unacceptable. There is no expert who can cope.

    Translated from Greek ·
    Did you find this review helpful?
  • Ntinaras
    5
    2 out of 2 members found this review helpful

    Verified purchase

    Positives:
    Works perfectly.
    Looks very high quality.
    Charges the EV with about 10kw (that's the EV's limit), theoretical max is 22kw.

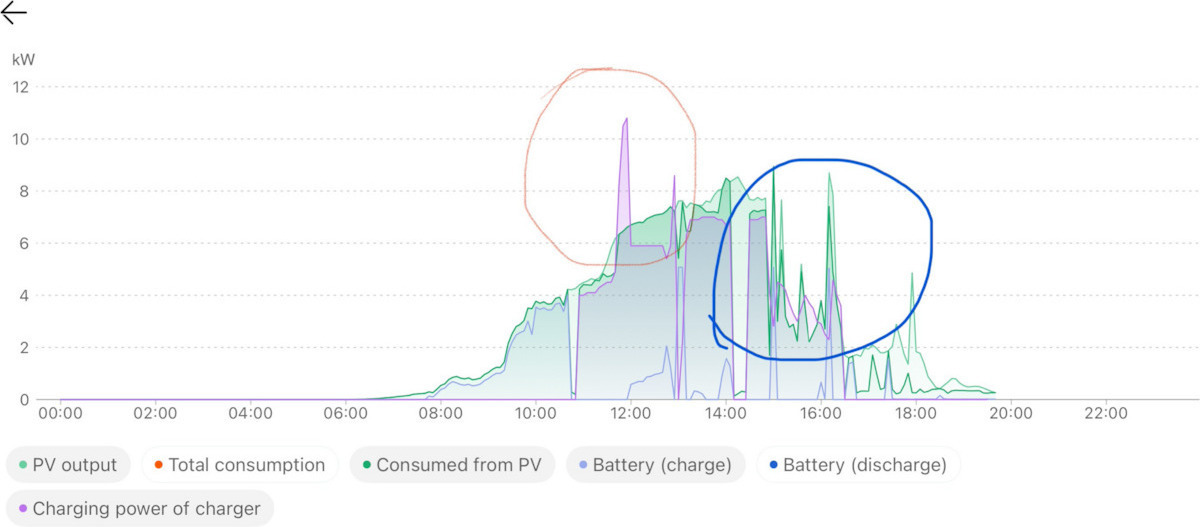

    It is compatible with the Huawei inverter of the photovoltaics, and you can set it to charge only when there is excess production, resulting in literally free charging. (as shown in the 2nd photo)
    Huawei's support is excellent. They also release firmware updates.

    Negatives:
    The Huawei Fusion Solar app is cumbersome, especially if you want to explore its features.

    Translated from Greek ·
    Did you find this review helpful?
  • It is fantastic. I highly recommend him!

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    4 out of 4 members found this review helpful

    Awesome but it's not on the subsidy list!

    Translated from Greek ·
    Did you find this review helpful?
  • Very good!
    With the option to work with single-phase and three-phase connection.
    The app is a bit difficult
    (you need to create an account as an installer first)

    Translated from Greek ·
    1
  • First of all, it always charges correctly, at the kilowatts it promises, at least at the 11 kW that our cars charge at. I point this out because other chargers give us slightly fewer kilowatts, for example, the ABB gives 10.3 kW.

    It is a reliable device, it hasn't frozen even once.

    Its main negatives are that it doesn't have a screen and that the Huawei app is restrictive, as follows.

    If your phone is a company phone and has some security policy that doesn't allow installing apps outside of Google Play, you're out of luck. The app doesn't even install because you download it from the Chinese Huawei site and your phone doesn't allow it.

    Translated from Greek ·
    1
  • For 4 months now, the technicians have been trying to connect and configure the application without good results. In the PV POWER PREFERRED option, it works for a few minutes and then increases the charger's power above the photovoltaic production, resulting in draining the house battery (red note on the graph). Or sometimes it operates with a time delay (blue note on the graph). Unfortunately, the technical support is unacceptable and I haven't been able to resolve this for so many months. Everyone tries to sell the product by promising features they cannot deliver. Huawei's support network is at best unacceptable. There is no expert who can cope.

    Translated from Greek ·
    3
  • Positives:
    Works perfectly.
    Looks very high quality.
    Charges the EV with about 10kw (that's the EV's limit), theoretical max is 22kw.
    It is compatible with the Huawei inverter of the photovoltaics, and you can set it to charge only when there is excess production, resulting in literally free charging. (as shown in the 2nd photo)
    Huawei's support is excellent. They also release firmware updates.

    Negatives:
    The Huawei Fusion Solar app is cumbersome, especially if you want to explore its features.

    Translated from Greek ·
    2
  • It is fantastic. I highly recommend him!

    Translated from Greek ·
    0
  • See all

Description & Specifications

Socket Type: Type 2

Charging Capacity: 22000 W

Voltage: 400 V

Current: 32 A

Wi-Fi: Yes

Cable Protection (Cable E-Lock via app)

Residual Current Protection (RCD): Type A (30mA) + DC 6 mA integrated

Overload Protection - IEC 61851-1

Overheating Protection

Voltage Protection (CAT II)

Temperature Range: -35C ~ +40C (32 A), -35C ~ +50C (16 A)

Dimensions: 335 x 180 x 145 mm

Weight: 3.1 kg

Certifications: EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1

Protection Rating: IP54

Impact Rating: IK10

Manufacturer

Placement
Wall Mounted
Phase Capacity
Three-Phase
Charging Power
22 kW
Built-in Cable
No
Charging Port
Type 2

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
