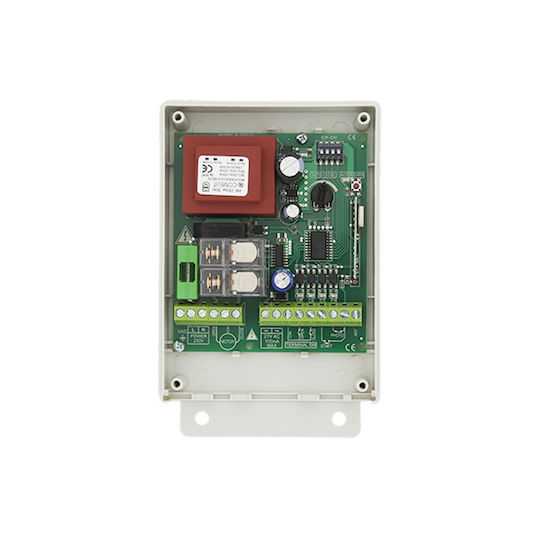

The Autotech R2010S single-phase control panel for roller shutters operates on a 230 VAC power supply and features a built-in 433.92 MHz PLL receiver. It can store up to 250 remote controls and supports adjustable automatic closing and automatic limit detection.

Its inputs connect to safety devices such as photocells and pressure-sensitive safety edges, as well as motion-detection devices for automatic opening, such as a magnetic loop and an infrared sensor. It has outputs for a warning light and safety lights, while the diagnostic LEDs check all inputs during installation and door operation.

• Power supply: Single-phase, 230 VAC
• Receiver frequency: 433.92 MHz PLL
• Remote control capacity: Up to 250
• Automatic closing: Adjustable
• Limit detection: Automatic
• Safety inputs: For photocells and pressure-sensitive safety edges
• Automatic opening input: For a magnetic loop and infrared sensor
• Outputs: For a warning light and safety lights
• Diagnostics: LEDs for checking all inputs
• Technology: SMD
• Compliance: CE
• Enclosure dimensions: 130 × 95 × 40 mm
• PCB dimensions: 100 × 85 mm
