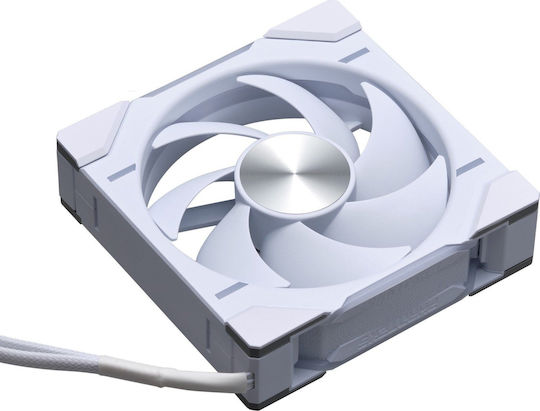

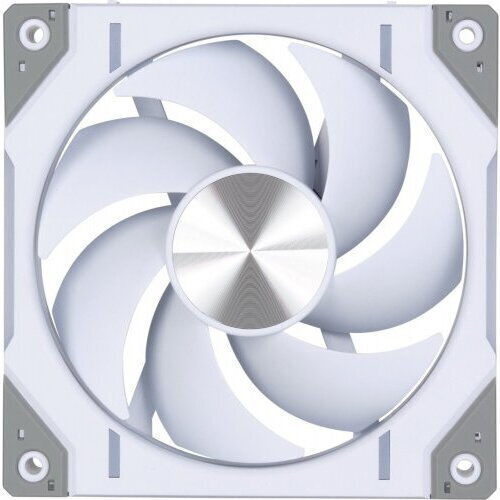

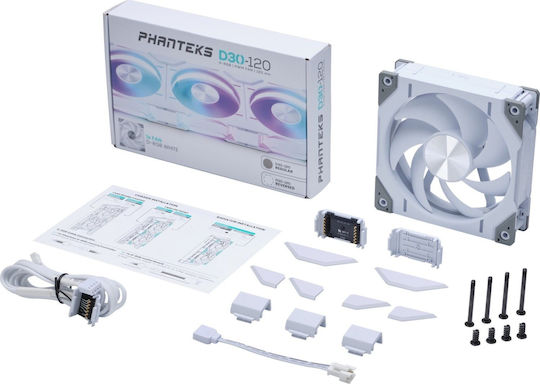

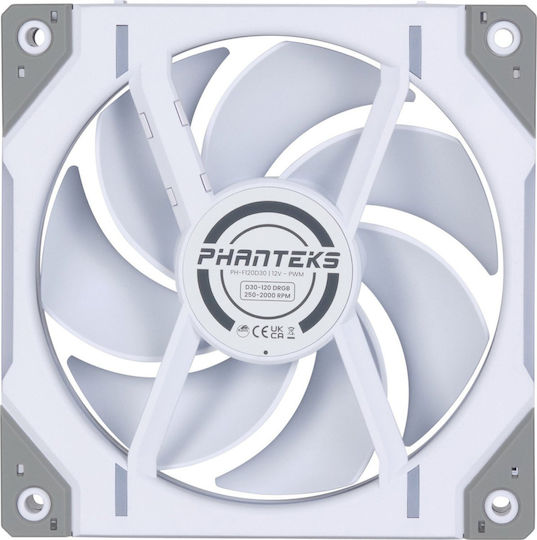

Phanteks PH-F120D30 Case Fan 2000rpm 61.5cfm with ARGB Lighting and 4-Pin PWM Connection Regular White
Case Fans

Phanteks PH-F120D30 Case Fan 2000rpm 61.5cfm with ARGB Lighting and 4-Pin PWM Connection Regular White

The Phanteks D30-120 is equipped with integrated D-RGB lighting throughout the structure and blades on all sides. Multiple D30-120 fans can be connected to each other via bridge connectors, reducing...

The Phanteks D30-120 is equipped with integrated D-RGB lighting throughout the structure and blades on all sides. Multiple D30-120 fans can be connected to each other via bridge connectors, reducing the number of cables and offering a highly aesthetic construction. The D30-120 combines high-quality D-RGB lighting with a thickness of 30 mm and aerodynamically...

See full description See full description

Packaging

  1. 1 pcs

    from 31,53 €

  2. 3 pcs

    from 85,62 €

Led color

  1. RGB

    from 31,53 €

  2. ARGB

    from 31,53 €

Blade type

  1. Standard

    from 31,53 €

  2. Reverse

    from 31,53 €

Product report

Description

Description

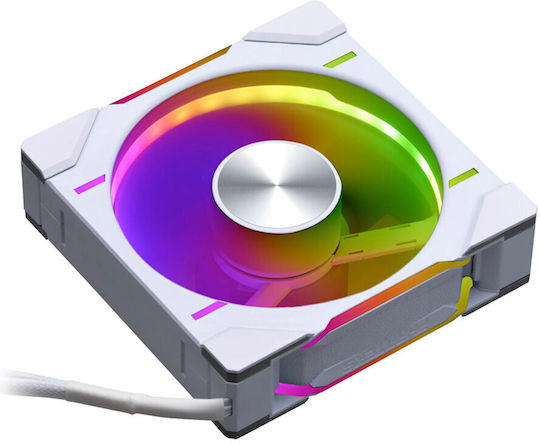

The Phanteks D30-120 is equipped with integrated D-RGB lighting throughout the structure and blades on all sides. Multiple D30-120 fans can be connected to each other via bridge connectors, reducing the number of cables and offering a highly aesthetic construction. The D30-120 combines high-quality D-RGB lighting with a thickness of 30 mm and aerodynamically inspired blades from the best T30 fan, making it a true premium class D-RGB fan for modern systems.

Available in two models with airflow direction, normal and reverse. This unique option allows for optimal fan configuration for each system. The PHANTEKS D30-120 PWM D-RGB fans are designed to achieve high airflow and static pressure. With a depth of 30 mm and a powerful hydrodynamic PWM motor, they can be used for case cooling through restrictive filters or mounted on radiators.

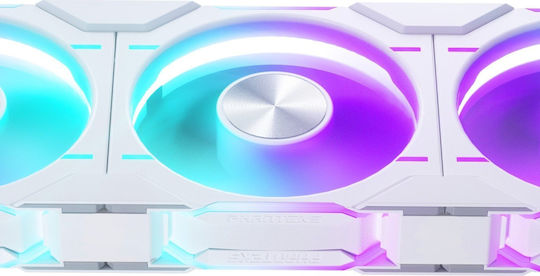

The fans offer extensive daisy-chaining capabilities without cable clutter. You can connect up to four of them using only one cable for connection to the motherboard for PWM and ARGB signal transmission. Available in normal and reverse airflow direction, you can choose the model you need, hiding unsightly adhesive tapes and maintaining flawless construction.

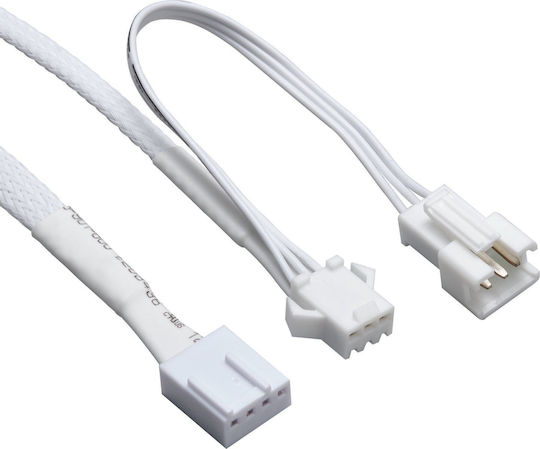

This version operates in normal mode, moving air from the front to the back and out of the case. The fans can be connected via two clips located on the sides of the fan, one of which transfers power from the first fan to all four. This reduces cable clutter, as it is sufficient to connect the first fan to the PHANTEKS controller with a 4-pin PWM cable and a 3-pin D-RGB JST cable. A D-RGB to 3-pin ARGB transition cable is also included, allowing direct connection to the motherboard.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
2000 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
31.8 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
61.5 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
ARGB
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
1.67 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
