PWM Solar Charge Controller LD2420C 12V / 20A 210-00-05

The LD2420C charge controller manages the charging of photovoltaic systems using PWM technology and automatically detects the system voltage. The LCD displays the charging current, discharging...

The LD2420C charge controller manages the charging of photovoltaic systems using PWM technology and automatically detects the system voltage. The LCD displays the charging current, discharging current, and battery voltage every 5 seconds. It includes settings for charging and discharging parameters, temperature compensation, and remote monitoring.

  • Type: PWM...
See full description See full description
34 90 €
Delivery by Mon, 23 Nov
14,00 €   shipping cost
Sent from Greece
From 787.gr Shop
Greece
20+ pieces
See Photovoltaics & Wind Turbines on the page of 787.gr Shop

Learn more about invoicing

Description

Description

The LD2420C charge controller manages the charging of photovoltaic systems using PWM technology and automatically detects the system voltage. The LCD displays the charging current, discharging current, and battery voltage every 5 seconds. It includes settings for charging and discharging parameters, temperature compensation, and remote monitoring.

  • Type: PWM
  • Maximum system voltage: 12 V
  • Maximum charging current: 20 A
  • Display: LCD
  • Maximum photovoltaic panel input voltage: 55 V
  • Maximum photovoltaic panel power: 260 W in a 12 V system, 520 W in a 24 V system
  • Protections: Battery discharge and low-voltage protection, overload, short-circuit, and reverse-current protection
  • Restart after overload: Automatic, with a delay
  • Protection rating: IP32

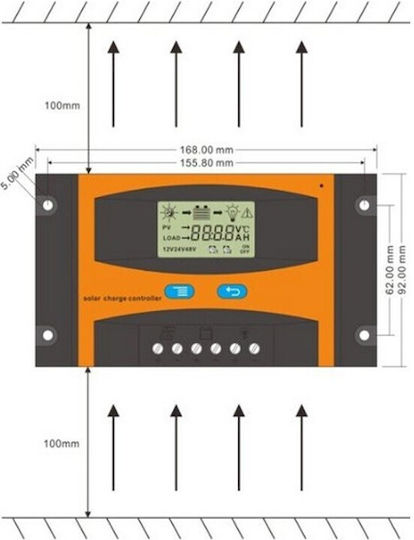

  • Dimensions: 168 × 92 × 41.5 mm
  • Weight: 0.320 kg

Manufacturer

OEM
See full description

Specifications

Specifications

Type
PWM
Maximum Voltage
12 V
Maximum Short Circuit Current
20 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The LD2420C charge controller manages the charging of photovoltaic systems using PWM technology and automatically detects the system voltage. The LCD displays the charging current, discharging current, and battery voltage every 5 seconds. It includes settings for charging and discharging parameters, temperature compensation, and remote monitoring.

  • Type: PWM
  • Maximum system voltage: 12 V
  • Maximum charging current: 20 A
  • Display: LCD
  • Maximum photovoltaic panel input voltage: 55 V
  • Maximum photovoltaic panel power: 260 W in a 12 V system, 520 W in a 24 V system
  • Protections: Battery discharge and low-voltage protection, overload, short-circuit, and reverse-current protection
  • Restart after overload: Automatic, with a delay
  • Protection rating: IP32
  • Dimensions: 168 × 92 × 41.5 mm
  • Weight: 0.320 kg

Manufacturer

OEM
Type
PWM
Maximum Voltage
12 V
Maximum Short Circuit Current
20 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
