Asus Prime H610M-E-CSM Motherboard Micro ATX with Intel 1700 Socket
Motherboards

Asus Prime H610M-E-CSM Motherboard Micro ATX with Intel 1700 Socket

Key features:

  • 2 DDR5 Ram slots up to 5600(O.C.)
  • For Intel Alder/Raptor processors
  • Supports PCI Express 4.0 x16
  • DisplayPort, HDMI, VGA connections
  • 4x Sata III and 2x M.2 slots
  • 2 USB 3.2 ports, 2 USB 2.0 ports
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

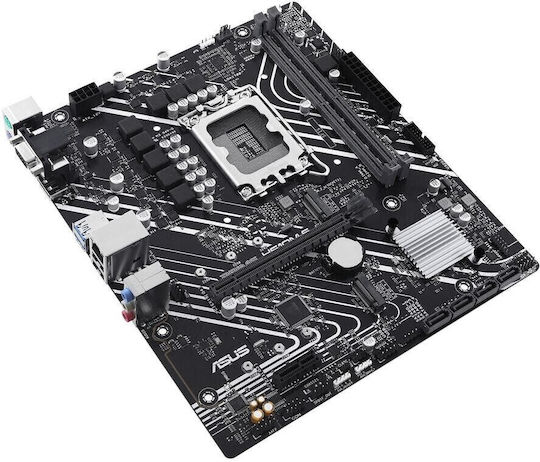

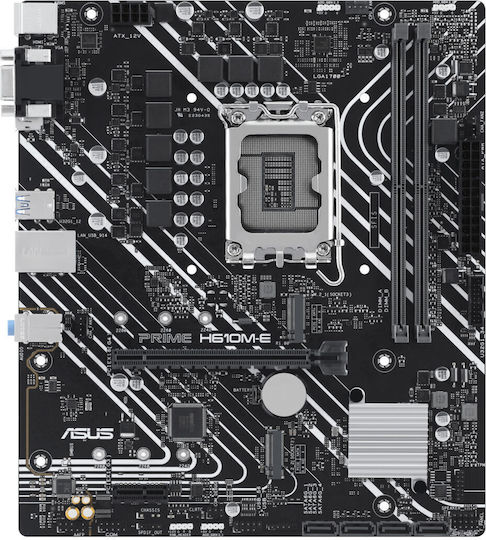

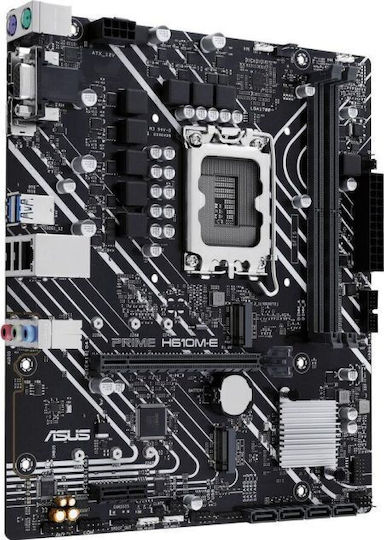

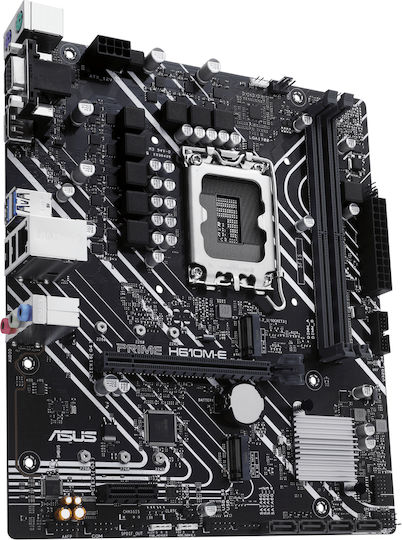

The Asus Prime H610M-E-CSM motherboard is aimed at users who are looking for a basic and affordable solution for building a computer. This motherboard belongs to Asus's Prime series, which usually offers reliable and basic solutions without frills.

The Asus Prime H610M-E-CSM supports 12th and 13th generation Intel processors, such as Core i9, i7, i5, i3, Pentium, and Celeron. It is equipped with basic functions and features, such as support for DDR5 memory, PCIe slots for desktop graphics cards, USB ports, and other basic connections.

  • Intel® LGA 1700 Socket: Intel® Generation Ready for 13th and 12th Generation Intel® processors
  • Comprehensive Cooling: PCH and Fan Xpert 2+
  • Ultra-fast Connectivity: 32 Gbps M.2 Socket, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1
  • Aura Sync RGB Lighting: Built-in Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synchronized with Aura Sync compatible hardware
  • ASUS Control Center Express: Real-time monitoring and management software for enhanced data protection

Fan Xpert 2+

Flexible cooling controls

The Prime 600 series motherboards offer complete control of the system fans through the included Fan Xpert 2+ software. The auto-tuning function intelligently adjusts all parameters with just one click.

Cooling Design

The Prime H610 series features comprehensive cooling controls that can be customized through the Fan Xpert 2+ software or via the UEFI BIOS.

  • Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU intensive tasks.
  • A dedicated integrated circuit protects each fan header from overheating and overcurrent.
  • Each onboard header supports automatic detection of PWM or DC fans.

Dual M.2

The PRIME H610M-E-CSM features two M.2 slots that support data transfer speeds of up to 32 Gbps via PCIe 3.0, allowing for faster boot times and application loading with operating system or application drives.

PCIe 4.0

The Prime H610 motherboards are specifically designed for Intel® Core™ 13th and 12th generation CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The large bandwidth and extremely fast transmission speeds allow you to create feature-rich builds that can effortlessly handle high loads.

USB 3.2 Gen 1 Type-A

The numerous USB ports support high-spec peripherals, including USB Type-A ports on the rear with fast USB 3.2 Gen 1 connectivity for compatible cases.

Armoury Crate

Armoury Crate is a new software utility designed to provide you with centralized control of supported products. From a single intuitive workspace, Armoury Crate allows you to easily customize RGB lighting and effects for each compatible device in your arsenal.

The software also provides control over settings for a growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product listings and news to help you stay connected with the ASUS community.

SafeSlot Core

The SafeSlot Core is ASUS's exclusive PCIe slot. Featuring a reinforced design anchored to the motherboard with a special hook, the SafeSlot Core provides 1.6 times stronger retention and 1.3 times greater shear resistance than standard expansion slots.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel H610

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
2 DIMM Slots
Memory Speeds
4800, 5000, 5200, 5400, 5600

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 3.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

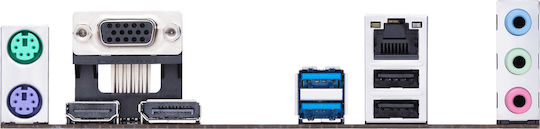

External Connectors

Rear USB-A outputs
2 USB 2.0 Ports, 2 USB 3.2 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI, VGA

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
RGB Header

Extra

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
2x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel H610

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
2 DIMM Slots
Memory Speeds
4800, 5000, 5200, 5400, 5600

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 3.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 2.0 Ports, 2 USB 3.2 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI, VGA

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
RGB Header

Extra

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
2x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The Asus Prime H610M-E-CSM motherboard is aimed at users who are looking for a basic and affordable solution for building a computer. This motherboard belongs to Asus's Prime series, which usually offers reliable and basic solutions without frills.

The Asus Prime H610M-E-CSM supports 12th and 13th generation Intel processors, such as Core i9, i7, i5, i3, Pentium, and Celeron. It is equipped with basic functions and features, such as support for DDR5 memory, PCIe slots for desktop graphics cards, USB ports, and other basic connections.

  • Intel® LGA 1700 Socket: Intel® Generation Ready for 13th and 12th Generation Intel® processors
  • Comprehensive Cooling: PCH and Fan Xpert 2+
  • Ultra-fast Connectivity: 32 Gbps M.2 Socket, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1
  • Aura Sync RGB Lighting: Built-in Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synchronized with Aura Sync compatible hardware
  • ASUS Control Center Express: Real-time monitoring and management software for enhanced data protection

Fan Xpert 2+

Flexible cooling controls

The Prime 600 series motherboards offer complete control of the system fans through the included Fan Xpert 2+ software. The auto-tuning function intelligently adjusts all parameters with just one click.

Cooling Design

The Prime H610 series features comprehensive cooling controls that can be customized through the Fan Xpert 2+ software or via the UEFI BIOS.

  • Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU intensive tasks.
  • A dedicated integrated circuit protects each fan header from overheating and overcurrent.
  • Each onboard header supports automatic detection of PWM or DC fans.

Dual M.2

The PRIME H610M-E-CSM features two M.2 slots that support data transfer speeds of up to 32 Gbps via PCIe 3.0, allowing for faster boot times and application loading with operating system or application drives.

PCIe 4.0

The Prime H610 motherboards are specifically designed for Intel® Core™ 13th and 12th generation CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The large bandwidth and extremely fast transmission speeds allow you to create feature-rich builds that can effortlessly handle high loads.

USB 3.2 Gen 1 Type-A

The numerous USB ports support high-spec peripherals, including USB Type-A ports on the rear with fast USB 3.2 Gen 1 connectivity for compatible cases.

Armoury Crate

Armoury Crate is a new software utility designed to provide you with centralized control of supported products. From a single intuitive workspace, Armoury Crate allows you to easily customize RGB lighting and effects for each compatible device in your arsenal.

The software also provides control over settings for a growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product listings and news to help you stay connected with the ASUS community.

SafeSlot Core

The SafeSlot Core is ASUS's exclusive PCIe slot. Featuring a reinforced design anchored to the motherboard with a special hook, the SafeSlot Core provides 1.6 times stronger retention and 1.3 times greater shear resistance than standard expansion slots.

Manufacturer

Manufacturer Details

Warnings & Safety Information
