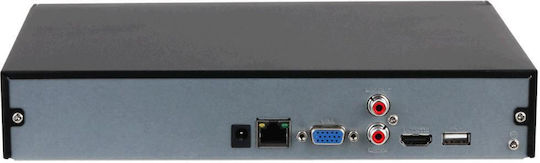

Dahua DVR NVR NVR4108HS-EI
Surveillance Video Recorders

Dahua DVR NVR NVR4108HS-EI

Key features:

  • 8 IP channels up to 16MP
  • WizSense Artificial Intelligence
  • HDD slot up to 20TB
  • 4K HDMI video output

Monitor your space with top accuracy, utilizing the advanced WizSense artificial intelligence features of the Dahua recorder.

See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    80

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

Number of channels outputs

  1. 4

    from 135,23 €

  2. 8

    from 151,27 €

  3. 16

    from 306,90 €

Resolution

  1. Full HD+

    from 135,23 €

  2. 4K

    from 151,27 €

Learn more about invoicing
Product report

Description

Description

At a glance

  • 8 IP Channels up to 16MP: Support for high-resolution network cameras with a bandwidth of 80 Mbps.
  • WizSense Artificial Intelligence: Face detection, perimeter protection, and SMD Plus functions.
  • HDD Slot up to 20TB: Support for one SATA hard drive for video recording.
  • 4K HDMI Video Output: HDMI port supporting resolution up to 3840x2160.

Smart perimeter protection with WizSense technology

Upgrade the security of your space with the built-in artificial intelligence features of the recorder. The 2-channel perimeter protection and SMD Plus 4-channel technology automatically filter false alarms from rain or leaves, focusing exclusively on people and vehicles.

High-resolution 16MP recording and 4K output

Monitor every detail of your space with support for cameras with resolution up to 16 Megapixel. The device features an HDMI output with 4K Ultra HD resolution and supports the Smart H.265+ compression standard, ensuring excellent image quality with significant storage savings.

Large storage capacity and connectivity

Store your recorded material without limitations thanks to the SATA port that supports a hard drive up to 20TB. At the same time, manage the system remotely from your mobile phone via the iOS and Android app, maintaining full control wherever you are.

Specifications

  • Manufacturer / Model: Dahua NVR4108HS-EI
  • Input Channels: 8 IP
  • Bandwidth: 80 Mbps (Incoming / Recording / Outgoing)
  • Camera Resolution: Up to 16 MP
  • AI Functions: Face Detection & Recognition (1 channel), Perimeter Protection (2 channels), SMD Plus (4 channels)
  • Video Outputs: 1x HDMI (up to 3840 x 2160), 1x VGA (1920 x 1080)
  • Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Disk Slot: 1x SATA (up to 20 TB)
  • Communication Ports: 1x RJ-45 (10/100 Mbps), 2x USB 2.0, 1x RCA Audio In, 1x RCA Audio Out
  • Power Supply / Consumption: 12 VDC, 2A / <7.8 W (without HDD)
  • Dimensions / Weight: 260 x 232.7 x 47.6 mm / 0.84 kg

Package Contents

  • 1 x Dahua NVR4108HS-EI Recorder

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
8

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
80 Mbps

Incoming Bandwidth: 80

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
16 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
