The latest Intel® N100 processor, based on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E cores with a turbo frequency of 3.4 GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable entry-level computers.
Specifications
Description
Product Details
- Size
- Mini ITX
- Type
- Desktop
Processor
- Supported Processors
- Intel
- Models
- Celeron Quad Core
- Supported CPU Generation
- Alder Lake
Chipset
- Model
- SoC
Memory
- Memory type
- DDR4
- Quantity
- 1 DIMM Slots
- Memory Speeds
- 2400, 2666, 2933, 3000, 3200
- Memory Channels
- Dual Channel
Internal Connectors
- PCI Express x16 3.0
- 1 Slot
- SATA III 6Gb/s
- 2 Port
- M.2 Type
- 1 PCIe 3.0 Port
- M.2 Slots
- 0
External Connectors
- Rear USB-A outputs
- 2 USB 3.0 Ports, 4 USB 2.0 Ports
- Rear USB-C outputs
- 1 USB 3.2 Port
- Ethernet (LAN)
- 1
- Screen Connections
- HDMI, VGA
Specifications
- RGB Lighting
- No
- WiFi/Bluetooth
- No
- Extra
- -
Sound
- Sound Card Channels
- 7.1
- Additional Audio Connections
- -
Top Specs
- Memory
- 1x DDR4
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

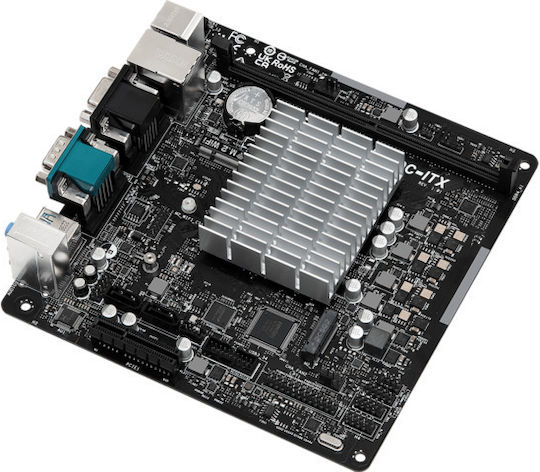

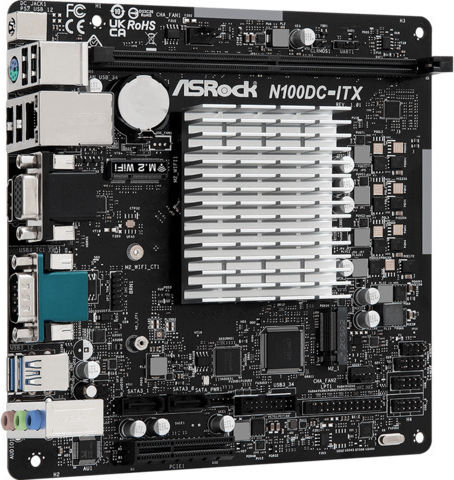

The ASRock N100DC-ITX is a small-form-factor motherboard that utilizes Intel's Alder Lake-N processors. This processor features four E-cores with a clock speed of 3.4 GHz and 6MB L3 cache. The motherboard has a DDR4 memory slot and supports up to 32GB of memory.
The ASRock N100DC-ITX also features the Intel UHD Graphics Xe engine, which has 24 EUs and a clock speed of up to 750 MHz. This graphics engine may not be suitable for gaming, but it is excellent for encoding and decoding tasks.
The ASRock N100DC-ITX does not have wireless connectivity, but ASRock has integrated an M.2 (Key E) slot to allow users to install an M.2 2230 wireless module.
Overall, the ASRock N100DC-ITX seems to be aimed at users looking for a quiet, power-efficient small-form-factor system for general use, such as web browsing, video viewing, document creation, and simple applications.
Intel® Alder Lake-N N100 Processor
The latest Intel® N100 processor, based on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E cores with a turbo frequency of 3.4 GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable entry-level computers.
DC-In Design
The DC-In socket is compatible with 19V power adapters (DC-in socket 5.5*2.5 mm). Without a bulky power supply, this unique design allows this motherboard to fit into compact cases.
Fanless Design
The CPU is covered by a specially designed heatsink that allows for advanced heat dissipation. Utilizing an ultra-quiet fanless design, this ASRock motherboard provides the quietest computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, AV1 hardware-accelerated decoding, and maximum resolution up to 4K x 2K 60Hz.
M.2 (KEY E) for WiFi
Apart from the built-in LAN port, users can also opt for wireless connections via the M.2 (Key E) slot.
