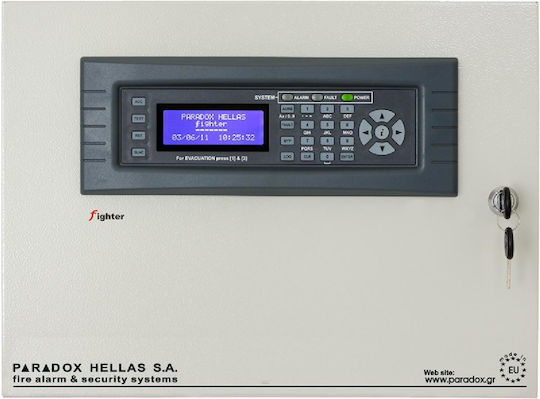

The Paradox PH.GR.FIT.08 fire alarm control panel is a conventional system based on Bus technology, with operation via a three-level access menu. Zones and relay outputs can be expanded using boards connected via a four-wire Bus, while detectors receive power and communicate with the panel through the zone connection.

It supports cross-zoning and extinguishing operation, with up to 18 areas in a fully installed system. Each extinguishing area uses four zones and four relays. The LCD keypad supports monitoring, operation and programming, while the system offers Intellizone alarm verification, day/night mode, general evacuation, Walk Test and event logging.

• Type: Conventional fire alarm control panel
• Communication technology: 4-wire Bus
• Access levels: 3
• Expandable zones: 8–72
• Zones per expansion board: 8
• Expandable relay outputs: 8–72
• Relays per expansion board: 8
• Zone relay output: 24 VDC
• Extinguishing areas: Up to 18
• Zones per extinguishing area: 4
• Relays per extinguishing area: 4
• Keypads and display devices: Up to 8
• Display: 4 × 20-character LCD
• Alarm outputs: 2 supervised, 24 VDC/1 A maximum
• Fault output: 1 unsupervised, dry relay contact, 3 A maximum
• Supported power supplies: Up to 16 FPS5 units
• Communication protocol: Contact ID via PSTN
• Event log: Up to 1,000 events
• Computer connection: RS-232 via FRS-232 module
• Remote connection: Via optional FRTCP/IP module
• Certifications: EN 54-2:1997/A1:2006/AC:1999, EN 54-4:1997/A2:2006/AC:1999, EN 12094-1:2003
