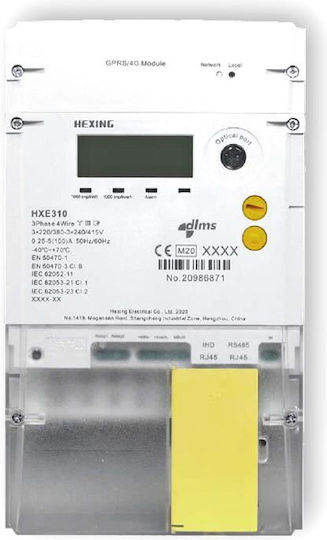

The HXE310 is a three-phase energy meter with an integrated modem for data transmission. It provides auxiliary programs to monitor all the key parameters of the network, such as voltage, current, power factor, and power quality metrics.

The plug-in unit's design allows auxiliary programs to deploy it in different environments with varying communication requirements.

Since the expandable multiple input/output capability is a significant factor in the smart meter to ensure the future application of smart grid.

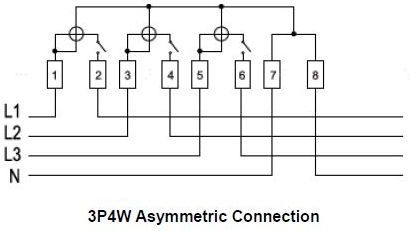

• 3P4W/3P3W connection
• Multiple types of events
• Direct connection
• Up to 500 event records
• Import & Export & Total & Net kWh
• Scheduled alarms for self-check meter
• Import & Export kvarh
• Alarms, breach, and event log powering quality activation
• Four quarter-hour kvarh
• Alarm indication (LED/LCD)
• Total & by invoice

Instant values LCD:

• Power, voltage, current
• Display area size 64.5 mm × 23 mm
• Power factor, Frequency
• Digital display size 8.4 mm × 5 mm
• Backlighting
• Customizable automatic and manual display list

Power Quality Monitoring:

• Testing mode
• Under & Over voltage
• OBIS codes (according to IEC62056-64)
• Deactivation
• RWP (Reading without power) (optional)
• Reverse Energy Sensor
• Low power factor, low & high frequency

Technical specifications: hxe310-catalog-v1.1
