Key System Features

• The energy performance provided:
  • Uf: 1.8 – 2.2 W/m2K
  • Uw: 1.5 W/m2K with double glazing (Ug: 1.0)
  • Uw: 1.2 W/m2K with triple glazing (Ug: 0.6)
• Three levels of thermal insulation with an additional insulating foam core zone of technology I2.
• Application of polyamide bars with glass reinforcement (25% PA6.625 GF) for high thermal insulation.
• Specially designed central intermediary and gluing elastics with fins.

Security

• Certified security WK2 with up to 21 perimeter locking points.

ELVIAL Sealing System

• Elastic corners made of EPDM.
• Optimized additional elastomer for effective waterproofing.
• Classification in the highest waterproofing category: E900, lft Rosenheim Germany.

Durability for a Lifetime

• Up to 130 kg / leaf up to 2,350mm height.
• Up to 1,350mm width / leaf and up to 53mm thickness of glazing.
• Specially designed flatness corners made of polyamide.
• Connection corners designed for the proper application of the hinge pin.

Technical Features

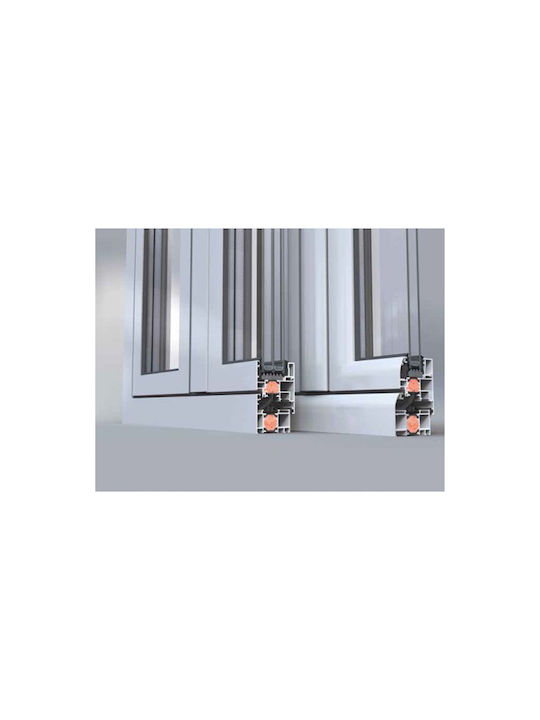

• Frame type: Single-leaf hinged thermal insulating
• Manufacturer: Elvial
• Series: 4600 ai2
• Opening direction: Available right and left
• Glasses: Double energy glass 4/ 15.5 / 4
• Electrostatic painting: ral 9016 (white)
• Thermal break: Yes
• Sound insulation: Yes
• Anti-burglary protection: Yes
• Espagnolette: Yes
• Perimeter frame: Yes
• Sandblasting: Yes
• Recalling: Yes
• Certification: Elvial
• Manufacturing time: 20-25 days
