The NF-826 wire & pipe detector is an excellent tool for locating wires, cables, and pipes underground as well as through walls.

Features:

• Detection of cables, wires & pipes
• Detection of fault location & short circuit in cables
• Fuse finding
• Detection of covered sockets
• Measurement of AC/DC voltage
• NCV (Non-contact Voltage) function
• Easy-to-read backlit display
• Flashlight for working in the dark

Technical specifications:

• Transmitter
• Output signal: 125kHz
• External voltage identification range: DC 12-400V +/-2.5%, AC 12-400V(50-60Hz) +/-2.5%
• Display: LCD, with function display and column chart
• Dielectric strength: Max. 400V AC/DC
• Overvoltage type: CAT III 300V
• Pollution degree: 2
• Power supply: 3.7V 1400 mAh Lithium battery
• Power consumption: MIN current: 80mA, MAX current: 300mA
• Fuse: F 0.5 A 500V, 6.3x32 mm
• Altitude: Max. 2000m
• Dimensions (HxWxD): 156 x 80 x 32mm
• Receiver
• Depth of tracking: Depends on the material and specific applications
• Cable locating mode:
• Single pole application: About 0-1m
• Dual-pole application: About 0-0.5m
• Single loop line: Up to 2.5m
• Grid voltage identification: About 0-0.4m
• Display: LCD, with function display and column chart
• Power supply: 3.7V 1400 mAh Lithium battery
• Power consumption: MIN current: 100mA, MAX current: 300mA
• Altitude: Max. 2000m
• Dimensions (HxWxD): 226 x 73 x 29mm

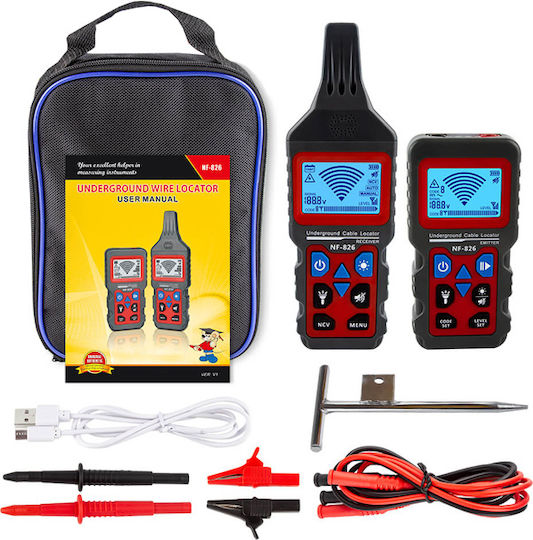

Package contents:

• Transmitter
• Receiver
• Test lead
• Crocodile clamps
• Test probe
• Carry bag
• User manual
