PRODUCT INFORMATION
- Brand: GLOBOSTAR LED LIGHTING AND ACCESSORIES GROUP
- Series: DIGISTRIP
- Category/Product Type: LED Digital Strip Set
- Installation Method: Surface with Double-Sided Tape
- Material: PCB Copper Triple Print
- Body Color: White
- Power Consumption: 36 Watt per 5 Meters (1 Roll)
- Equivalent: 200 Watt per 5 Meters (1 Roll)
- Energy Saving: >80%
- Nominal Voltage: DC 5V
- Power Factor λ: > 0.99

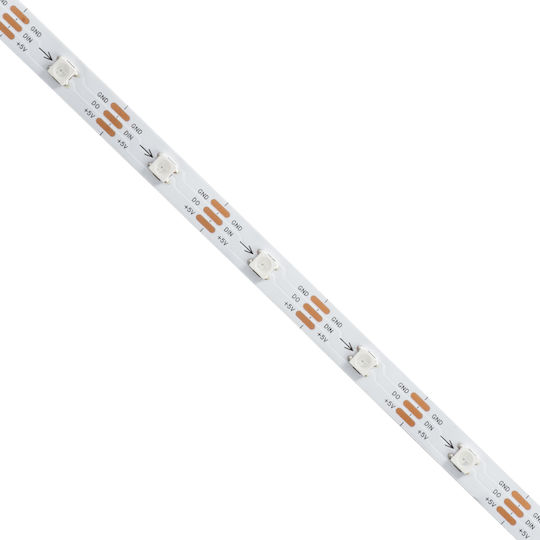

- LED Type: EPISTAR SMD 5050
- LED Quantity: 150 LED Chip per 5 Meters (1 Roll)
- Pixels per Meter: 150 Pixels per 5 Meters
- Addressable: Yes
- Communication Protocol: SPI/TTL
- Integrated Driver Type: SM16703P / WS2811
- Useful Luminous Flux: 2880 Lumen per 5 Meters (1 Roll)
- Luminous Flux Efficiency: 80 lm/W
- Color Temperature: Multicolor RGB
- Light Color: Multicolor RGB
- Color Rendering Index Ra: > 80
- Color Uniformity in McAdam Ellipses: ≤ 6 SDCM
- Luminous Flux Maintenance Factor: 0.94
- Displacement Factor (cos φ1): 0.92
- Flicker Measurement: 0.02 Pst LM Flicker Free
- Stroboscopic Effect Measurement: 0.001 SVM
- Beam Angle: 120° Wide Cone
- Operating Temperature Range: -20…+40 °C
- Protection Rating: IP20

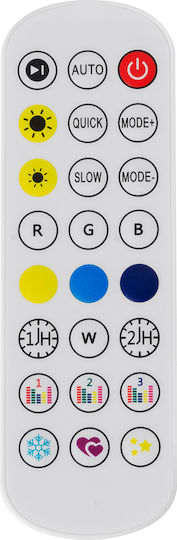

- Dimmable: Yes via Remote Control & WiFi App
- Nominal Lifetime: 25000 Hours
- Number of Switching Cycles: 50000 On / Off Cycles
- Certificates & Standards: CE EMC Directive 2014/30/EU - RoHS 2 Directive 2011/65/EU-(EU)2015/863-(EU)2017/2102
- Mercury Content: 0.0 mg
- UV / IR: 0.0 mg
- 100% Start-Up Time:
DIMENSIONS & WEIGHT
- Product Dimensions: L500 x W1 x H0.2cm
- Product Weight: 75g
- Packaging Type: GloboStar® Label
- Quantity per Package: 1 Pc.
- Quantity per Master Package (Box): 50 Pcs.
- Package Dimensions: L16 x W10.5 x H3cm
- Product Weight with Packaging: 112g
- Master Package Dimensions (Box): L35 x W25 x H35cm
- Net Weight of Master Package (Box): 5600g
- Volumetric Weight of Master Package (Box): 6125g
- Shipping Method: By Any Means (Courier or Transport)
- Product Number
- 90758
Dimensions
- Length
- 1 m
- Power Source
- 5V
- Light Colour
- RGB
- Protection Certification
- IP20
- Contents
- Remote control, Power supply
- USB
- Yes
Additional Features
- LED type
- SMD5050
- Connectivity
- RF
- TV
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
