Technical Data

• Brand: GLOBOSTAR
• Series: LED DIGITAL DISPLAY & ADVERTISING SCREENS
• Category/Product Type: Single-Sided Lighting
• Power Consumption: 225W
• Energy Saving: >80%
• Rated Voltage: AC 175..265 V
• Network Frequency: 50..60 Hz
• Power Factor λ: > 0.90

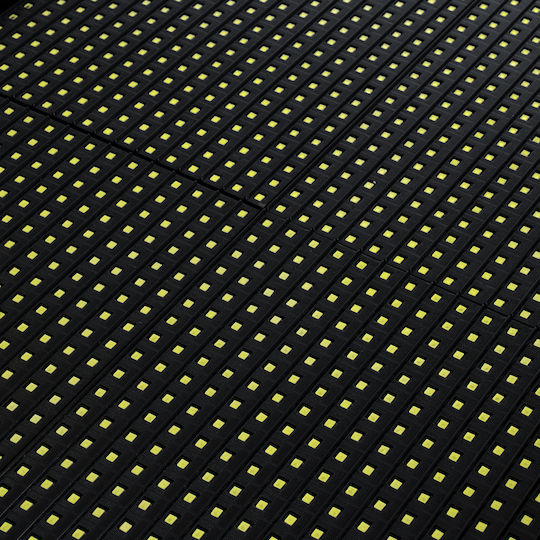

• LED Type: SANAN SMD 2835
• Luminance: ≥ 3000cd/㎡
• Color Temperature: 6000 K
• Lighting Color Category CCT: Cool White
• Color Rendering Index Ra: > 60
• Color Uniformity in McAdam Ellipse Steps: ≤ 6 SDCM
• Luminous Flux Maintenance Factor: 0.9
• Displacement Factor (cos φ1): 0.88
• Flicker Measurement: 0.02 Pst LM Flicker Free
• Stroboscopic Effect Measurement: 0.001 SVM
• Beam Angle: 140° Wide Cone
• Operating Temperature Range: -10…+60 °C
• Protection Rating: IP65

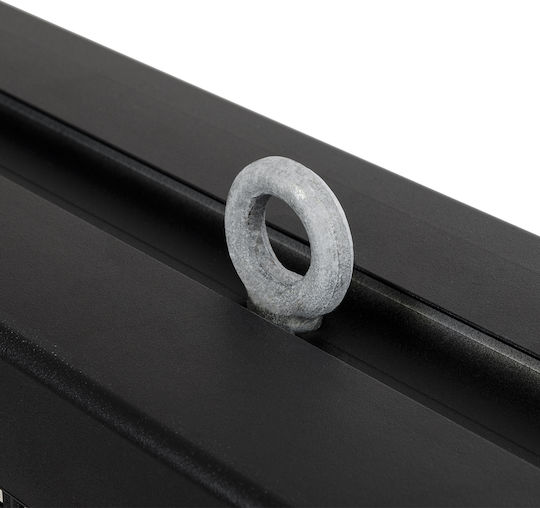

• Hanging Hooks: Yes
• Dimmable Flow: Yes
• Rated Lifetime: 35000 Hours
• Number of Switching Cycles: 50000 On / Off Cycles
• Signboard Resolution Type: P10

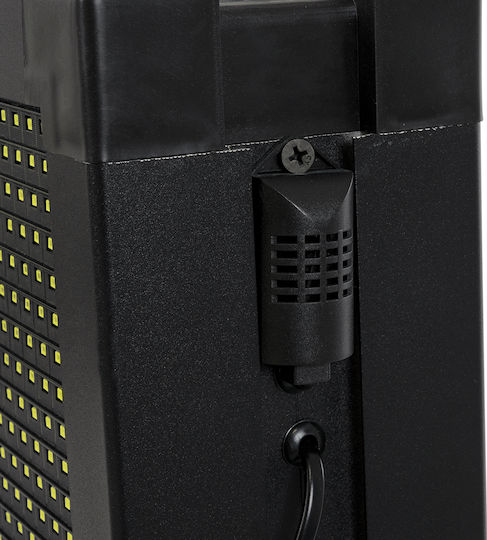

• Temperature & Humidity Sensor: Yes
• Time & Date: Yes
• Video & Animation Support: Yes
• Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz Network
• USB Port: On Internal Card (Flash Process)
• PC Management Software: FkShow Software - PC Version
• Mobile WiFi Management App: FkShow Software - Mobile Version
• Certificates & Standards: CE EMC Directive 2014/30/EU, CE LVD Directive 2014/35/EU, RoHS 2 Directive 2011/65/EU
• 100% Start Time: <0.2 s Instant Start

Dimensions & Weight

• Product Dimensions: L104 x W9 x H56cm
• Product Weight: 7460g
• Packaging Type: GloboStar® Label
• Quantity per Package: 1 Pc.
• Package Dimensions: L108 x W14 x H64cm
• Product Weight with Packaging: 7460g
• Main Packaging Dimensions (Box): L108 x W14 x H64cm
• Net Weight of Main Packaging (Box): 7460g
• Volumetric Weight of Main Packaging (Box): 19353g
• Shipping Method: By Any Means (Courier or Transport)
