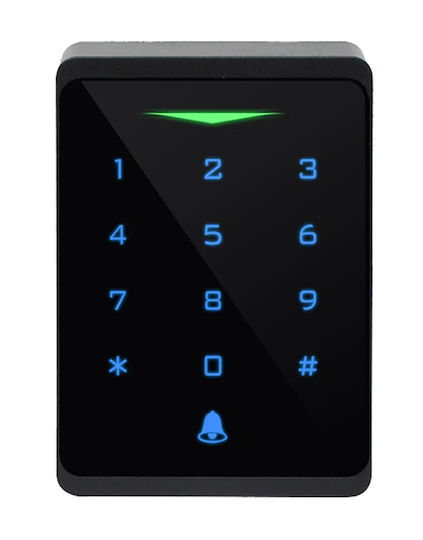

The CH1-WIFI-EM access keypad with code & card from Secukey is a standalone access keypad that supports access via code, card (EM), and smartphone through an app. It features touch keys and a body with IP66 sealing.

• Touch keypad
• Access via code, card (EM) & smartphone
• Wi-Fi connection
• Add/delete users via the app
• Set time limits for users
• Temporary codes
• Access history
• Doorbell button
• Compatible with iOS & Android devices
• IP66 sealing

Technical specifications:

• User capacity: 1000 (988 PIN/Card Users, 10 Visitor User, 2 Panic User)
• PIN Length: 4~6 digits
• Operating Voltage: 12~18V DC
• Proximity Card Reader: EM
• Read Range: 2~6cm
• Wiring Connections: Relay Output, Exit Button, Door Bell, Wiegand (in&out)
• Relay: One (NO, NC, Common)
• Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
• Lock Output Load: 2 Amp Maximum
• Wiegand Interface: Wiegand 26~44 bits input & output
• Environment: Meets IP66
• Temperature: -40 °C ~ 60 °C
• Humidity: 0%RH ~ 98%RH
• Material: ABS Shell
• Dimensions: 116x72x24mm
• Color: Black

Package contents:

• Access keypad
• Installation accessories (Screws, anchors, Torx key)
• Quick installation guide
