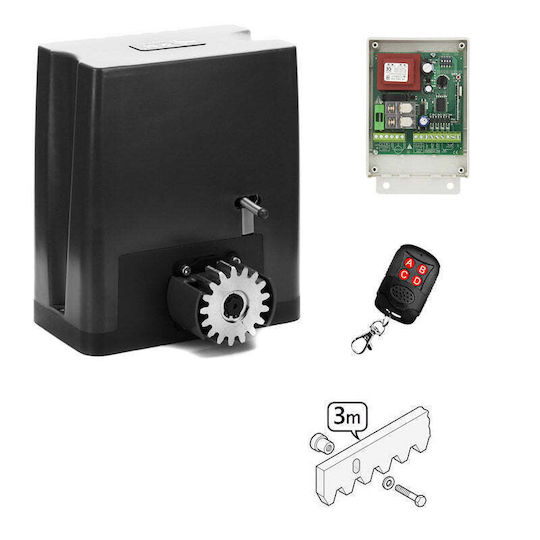

Next Systems Set Garage Door Motor for Sliding Door for Maximum Weight 600kg
Garage Door Motor Set

Next Systems Set Garage Door Motor for Sliding Door for Maximum Weight 600kg

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product Code (SKU): DKC600-er4-R2010D-ECO-KIT
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent...

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product Code (SKU): DKC600-er4-R2010D-ECO-KIT
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent lubrication with grease, Non-reversible
  • Openings per hour: up to 25 (for a door of indicative length 5 m, at 20°C)
  • Operating voltage of motor: 230VAC...
See full description See full description
Review the product
Product report

Description

Description

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product Code (SKU): DKC600-er4-R2010D-ECO-KIT
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent lubrication with grease, Non-reversible
  • Openings per hour: up to 25 (for a door of indicative length 5 m, at 20°C)
  • Operating voltage of motor: 230VAC (single-phase)

What the initial set includes:

  • 1 DKC600 motor
  • 2 disengagement keys (for manual operation)
  • 1 metal support bracket
  • 4 M8 galvanized anchors
  • 8 Ø8 galvanized washers
  • 8 M8 nuts
  • 2 metal plates (stop plates) for activating the limit switches
  • 4 M6 screws for the stop plates
  • 4 Ø8mm grover washers for the stop plates
  • 1 capacitor 12.5 μF
  • 1 user manual
  • 1 control panel with built-in receiver
  • 1 4-button remote control

Technical Specifications:

  • Supply voltage: 230VAC
  • Motor power consumption: 280Watt
  • Supply current: 1.3A
  • Motor speed: 1400rpm
  • Capacitor capacity: 12.5 μF
  • Maximum door weight: 600kg
  • Type of mechanism: Electromechanical permanent lubrication with grease, non-reversible
  • Internal gears: Metal
  • Maximum leaf speed: 13m/min
  • Protection rating against dust and moisture: IP-44
  • Motor weight: 10Kg
  • Motor dimensions: 237mm x 213 mm x 270 mm (Length x Width x Height)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Motor type
Sliding

Motor type

Sliding
Suitable for residential and commercial entrances, when there is available space for opening, as wide as the entrance width.
Maximum Weight
600 kg

Maximum Weight

Describes the maximum weight of the garage door that is suitable for the motor.
Built-in Control Panel
No

Set Contents

Motor
1 pcs
Control Panel
1 pcs
Remote Control
1 pcs
Security Beacon
1 pcs

Security Beacon

During motor operation, it flashes indicating that the door is moving. It is used as a safety accessory and where there is low visibility when exiting the vehicle.
Gear Rack
3 m

Gear Rack

This is a rod with teeth that is used in sliding automations. In combination with the motor gear, it ensures the movement of the garage door (opening and closing).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
