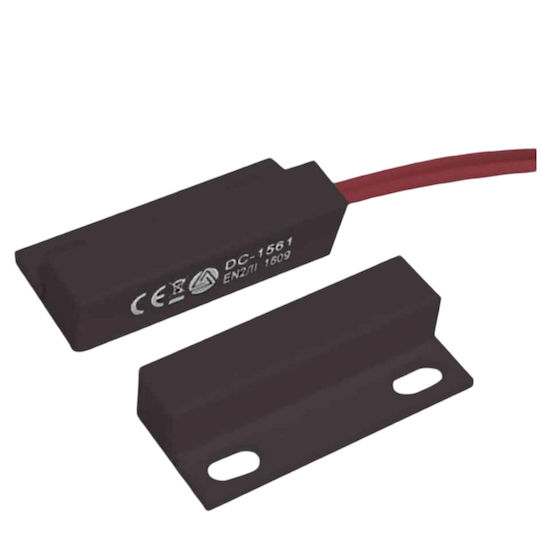

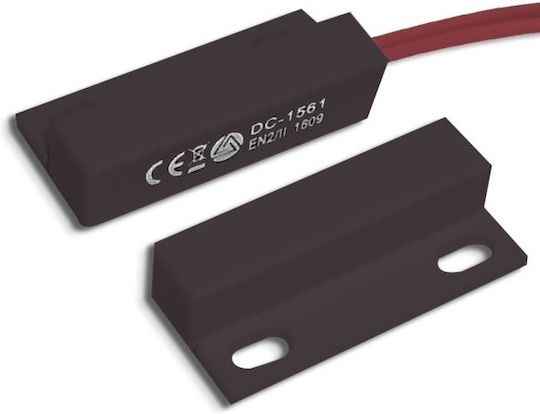

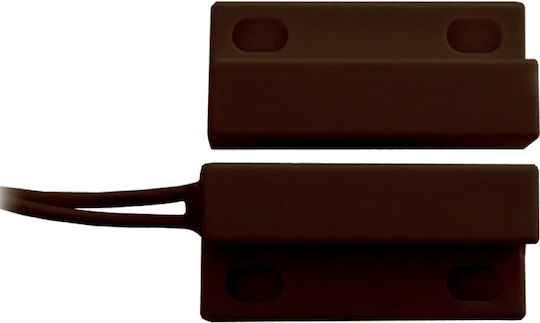

Aleph Wired Contact NC Sensor 27.8x12.7x6.5mm

Name: Aleph Wired Contact NC Sensor 27.8x12.7x6.5mm DC1561B
Brand: Aleph
SKU: 47500689
Price: 2.3 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Aleph DC1561 Coffee Flat Small Magnetic Contact (W,B) GAP 25.4 mm

Wired adhesive and screw-mounted small-sized magnetic contact that works at a distance of up to 1 or 2.54cm (wide gap closed loop)....

Aleph DC1561 Coffee Flat Small Magnetic Contact (W,B) GAP 25.4 mm

Wired adhesive and screw-mounted small-sized magnetic contact that works at a distance of up to 1 or 2.54cm (wide gap closed loop). Ideal for doors, windows, security doors, etc.

Wire length of 45cm and thickness of 22AWG
Maximum electrical resistance values: 28VDC 0.5AMP, 10W
Available...

See full description See full description

Connection Method

Wired

Connects to the installation system via cable.
Contact Operation

Contact NC

The circuit is closed when the door is also closed. When the door opens, the circuit opens as well and the alarm is triggered. It offers maximum security because it is activated even if the cable is cut.
Dimensions 27.8x12.7x6.5mm
See all

2 30 €

Delivery by Wed, 24 Jun

14,00 € shipping cost

Sent from Greece

From Maxsat 4.8 (44)

4.8 (44 reviews)

Greece

20+ pieces

See Household Sensors & Alarms on the page of Maxsat

Description

Aleph DC1561 Coffee Flat Small Magnetic Contact (W,B) GAP 25.4 mm

Wired adhesive and screw-mounted small-sized magnetic contact that works at a distance of up to 1 or 2.54cm (wide gap closed loop). Ideal for doors, windows, security doors, etc.

Wire length of 45cm and thickness of 22AWG
Maximum electrical resistance values: 28VDC 0.5AMP, 10W
Available colors: White, Brown, and Gray
Dimensions: 27.8 x 12.7 x 6.5 mm

Manufacturer

Aleph - Door & Window Sensors Aleph

See full description

Specifications

Connection Method: Wired

Λειτουργία Επαφής: Contact NC

Battery: No

Dimensions (Spec Summary): 27.8x12.7x6.5mm

Μεταλλική: No

Tamper: No

Pieces: 1 pcs

Installation

Screw-in: Yes

Adhesive: Yes

Recessed: No

Nailed: No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
