The Wilo Atmos PICO 25/1-8 circulator is designed for heating and air-conditioning systems. It is electronically controlled and uses an ECM technology motor that is resistant to locked-rotor current, with an integrated continuous differential pressure control system. Its wet-rotor design and low maintenance requirements complete its range of features.
The pump housing is made of grey cast iron, the impeller of PP-GF40, and the shaft of stainless steel. The bearings are made of metal-impregnated sintered carbon.
- Application: Heating and air conditioning
- Maximum head: 8 m
- Maximum flow rate: 4.3 m³/h
- Maximum operating pressure: 10 bar
- Connection diameter: 25 mm
- Suction and discharge connections: G 1½
- Installation length: 180 mm
- Fluid temperature: -10 °C to 95 °C
- Ambient temperature: -10 °C to 40 °C
- Power supply: 1~230 V ±10%, 50/60 Hz
- Rated output P2: 58 W
- Power consumption P1: 4 W to 75 W
- Speed: 500 rpm to 4800 rpm
- Energy Efficiency Index (EEI): ≤ 0.23
- Cable gland: 1 x PG11
- Insulation class: F
- Protection rating: IPX2D
- Standards: EN 61000-6-3, EN 61000-6-2, EN 61800-3
- Product Number
- 4232696
Product Details
- Electronic
- Yes
- Application
- Heating
- Maximum Pressure Head (m)
- 8 m

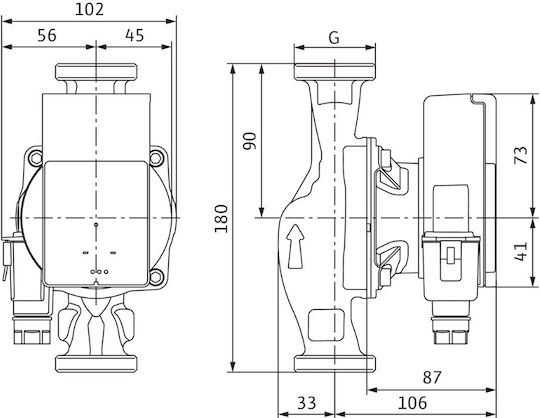

Dimensions
- Connection Diameter
- 25 mm
- Length
- 180 mm
