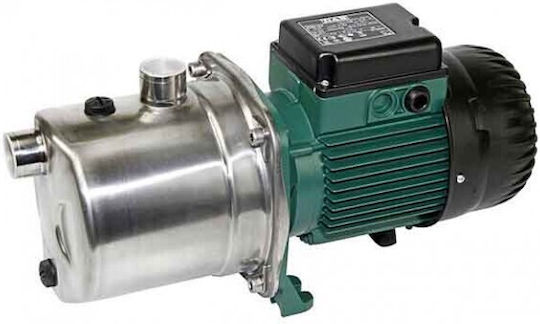

DAB Jet 132 T Electric Surface Water Pump with Automatic Suction 1.36hp Three-Phase
Surface Water Pumps

DAB Jet 132 T Electric Surface Water Pump with Automatic Suction 1.36hp Three-Phase

The DAB Jet 132 T surface water pump draws water using automatic self-priming and is installed horizontally. It operates on a three-phase 400 V - 50 Hz power supply and has a flow rate of up to 4.8...

The DAB Jet 132 T surface water pump draws water using automatic self-priming and is installed horizontally. It operates on a three-phase 400 V - 50 Hz power supply and has a flow rate of up to 4.8 m³/h and a maximum head of 48.3 m.

The pump casing is made of cast iron and the impeller of technopolymer. The inlet and outlet ports have a diameter of 1 inch,...

See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
  • Voltage Three-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
225 00 €
Delivery Thu, 12 Nov - Wed, 18 Nov
56,00 €   shipping cost
Sent from Greece
From Lamas
Greece
2 pieces
See Water Pumps on the page of Lamas

Learn more about invoicing
Review the product
Product report

Description

Description

The DAB Jet 132 T surface water pump draws water using automatic self-priming and is installed horizontally. It operates on a three-phase 400 V - 50 Hz power supply and has a flow rate of up to 4.8 m³/h and a maximum head of 48.3 m.

The pump casing is made of cast iron and the impeller of technopolymer. The inlet and outlet ports have a diameter of 1 inch, and the pump handles liquids at temperatures from 0 °C to 40 °C.

  • Type: Surface-mounted, self-priming Jet
  • Power supply: Electric, three-phase
  • Power: 1 kW / 1.36 hp
  • Voltage: 400 V - 50 Hz
  • Installation: Horizontal
  • Flow rate: 4.8 m³/h
  • Maximum head: 48.3 m
  • Pressure: 8 bar
  • Maximum operating pressure: 6 bar
  • Inlet port: 1 inch
  • Outlet port: 1 inch
  • Pump casing material: Cast iron
  • Impeller material: Technopolymer
  • Pumped liquid temperature: From 0 °C to 40 °C
  • Weight: 13.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1.36 hp
Flow Rate
4.8 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
48.3 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
Pressure
8 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The DAB Jet 132 T surface water pump draws water using automatic self-priming and is installed horizontally. It operates on a three-phase 400 V - 50 Hz power supply and has a flow rate of up to 4.8 m³/h and a maximum head of 48.3 m.

The pump casing is made of cast iron and the impeller of technopolymer. The inlet and outlet ports have a diameter of 1 inch, and the pump handles liquids at temperatures from 0 °C to 40 °C.

  • Type: Surface-mounted, self-priming Jet
  • Power supply: Electric, three-phase
  • Power: 1 kW / 1.36 hp
  • Voltage: 400 V - 50 Hz
  • Installation: Horizontal
  • Flow rate: 4.8 m³/h
  • Maximum head: 48.3 m
  • Pressure: 8 bar
  • Maximum operating pressure: 6 bar
  • Inlet port: 1 inch
  • Outlet port: 1 inch
  • Pump casing material: Cast iron
  • Impeller material: Technopolymer
  • Pumped liquid temperature: From 0 °C to 40 °C
  • Weight: 13.5 kg
