DAB Jet 102 T Electric Surface Water Pump with Automatic Suction 1hp Three-Phase
Surface Water Pumps

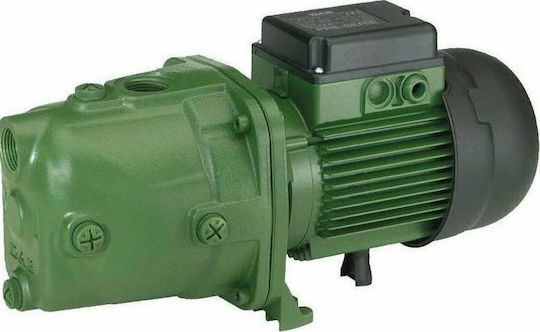

DAB Jet 102 T Electric Surface Water Pump with Automatic Suction 1hp Three-Phase

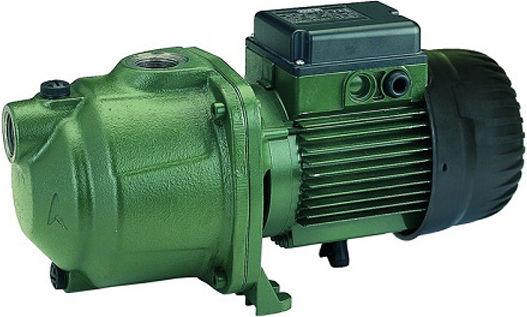

The DAB Jet 102 T electric surface pump is a self-priming Jet-type water pump designed for horizontal installation. It has a power rating of 750 W and operates on a three-phase 400 V - 50 Hz supply.

    ...

The DAB Jet 102 T electric surface pump is a self-priming Jet-type water pump designed for horizontal installation. It has a power rating of 750 W and operates on a three-phase 400 V - 50 Hz supply.

  • Pump type: Self-priming Jet-type water pump
  • Power: 750 W
  • Horsepower: 1 hp
  • Power supply: Electric
  • Voltage: Three-phase, 400 V - 50 Hz
  • Installation: Horizontal
  • ...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
  • Voltage Three-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
235 00 €
Delivery by Mon, 09 Nov
59,00 €   shipping cost
Sent from Greece
From Lamas
Greece
2 pieces
See Water Pumps on the page of Lamas

Learn more about invoicing
Review the product
Product report

Description

Description

The DAB Jet 102 T electric surface pump is a self-priming Jet-type water pump designed for horizontal installation. It has a power rating of 750 W and operates on a three-phase 400 V - 50 Hz supply.

  • Pump type: Self-priming Jet-type water pump
  • Power: 750 W
  • Horsepower: 1 hp
  • Power supply: Electric
  • Voltage: Three-phase, 400 V - 50 Hz
  • Installation: Horizontal
  • Flow rate: 3.6 m³/h
  • Total head: 63.8 m
  • Inlet port: 1"
  • Outlet port: 1"
  • Pump body material: Cast iron
  • Impeller material: Technopolymer
  • Pumped liquid temperature: From 0 °C to 40 °C
  • Maximum operating pressure: 6 bar
  • Weight: 12.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Flow Rate
3.6 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
63.8 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The DAB Jet 102 T electric surface pump is a self-priming Jet-type water pump designed for horizontal installation. It has a power rating of 750 W and operates on a three-phase 400 V - 50 Hz supply.

  • Pump type: Self-priming Jet-type water pump
  • Power: 750 W
  • Horsepower: 1 hp
  • Power supply: Electric
  • Voltage: Three-phase, 400 V - 50 Hz
  • Installation: Horizontal
  • Flow rate: 3.6 m³/h
  • Total head: 63.8 m
  • Inlet port: 1"
  • Outlet port: 1"
  • Pump body material: Cast iron
  • Impeller material: Technopolymer
  • Pumped liquid temperature: From 0 °C to 40 °C
  • Maximum operating pressure: 6 bar
  • Weight: 12.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Flow Rate
3.6 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
63.8 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
