Mechanism for the automation of sliding gates and garage doors up to 600kg.

Product code: DKC600-e4-e500-SL-REPLACE-KIT

Maximum leaf weight: 600kg

Motor power: 280Watt

Type of mechanism: Permanent lubrication with grease, Non-reversible

Openings per hour: up to 25 for a door of indicative length 5m, at 20°C

Motor operating voltage: 230VAC (single-phase)

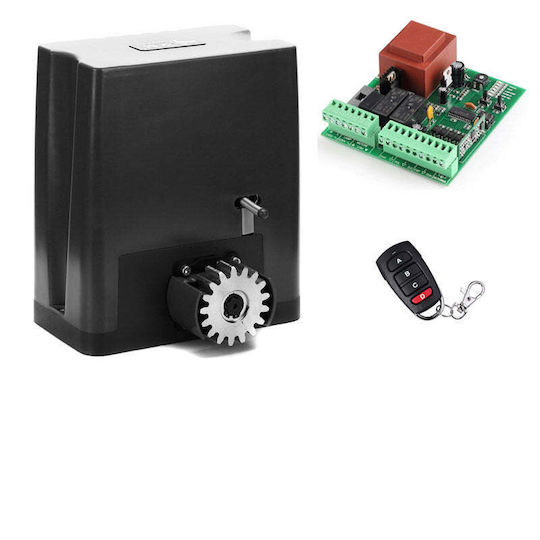

What the initial set includes:

• 1 DKC600 motor
• 2 disengagement keys (for manual operation)
• 1 metal support bracket
• 4 M8 galvanized anchors
• 8 Ø8 galvanized washers
• 8 M8 nuts
• 2 metal plates (stop plates) for activating the limit switches
• 4 M6 screws for the stop plates
• 4 Ø8mm washer springs for the stop plates
• 1 capacitor 12.5 μF
• 1 user manual
• 1 electronic control board with built-in receiver
• 1 4-button remote control

The REPLACE KIT is intended for mechanisms for sliding gates and is suggested in cases where we want to replace an existing mechanism. For this reason, a rack is not included as the existing one is utilized.

Technical Specifications:

• Product code: DKC600-e4-e500-SL-REPLACE-KIT
• Power supply voltage: 230VAC
• Motor power consumption: 280Watt
• Power supply current: 1.3A
• Motor speed: 1400rpm
• Capacitor capacity: 12.5 μF
• Maximum door weight: 600kg
• Type of mechanism: Electromechanical with permanent lubrication using grease, non-reversible
• Internal gears: Metallic
• Maximum frequency of use: S3: 30% at 20°C, S2: 10min
• Maximum leaf speed: 13m/min
• Thermal protection of motor winding: 120°C
• Gear type: Z17 / m4 (17 teeth / module 4)
• Type of limit switches: Mechanical - With microswitches and spring
• Disengagement method: With key
• Operating temperature range: -20°C to +55°C
• Degree of protection against dust and moisture: IP-44
• Sound pressure level: <56db
• Motor weight: 10Kg
• Motor dimensions: 237mm x 213mm x 270mm
• Motor box dimensions: 270mm x 255mm x 320mm
• Motor cover color: Black
• Packaging: Cardboard box
• CE Compliance: YES

The dimensions of the DKC600 mechanism are shown below (in mm):
