Mechanism for the automation of sliding garden gates and garage doors up to 600kg.

• Maximum leaf weight: 600kg
• Motor power: 280Watt
• Type of mechanism: Permanent lubrication with grease, Non-reversible
• Openings per hour: For a door of indicative length 5 m, at 20°C: up to 25
• Operating voltage of motor: 230VAC (single phase)

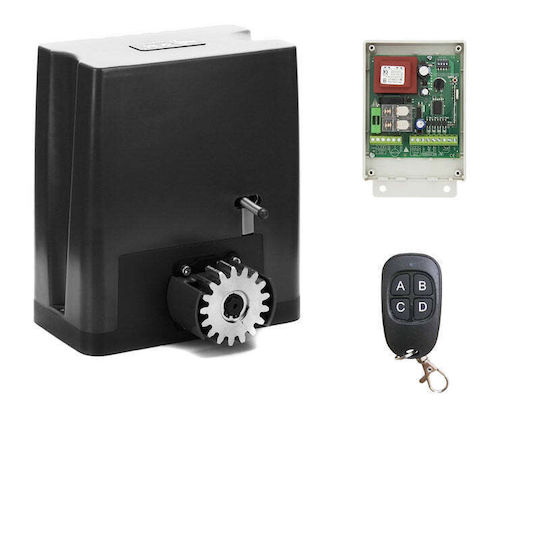

The initial set includes:

• 1 DKC600 motor
• 2 disengagement keys (for manual operation)
• 1 metal support base
• 4 galvanised M8 anchors
• 8 galvanised washers Ø8
• 8 M8 nuts
• 2 metal plates (stop strips) for activating the limit switches
• 4 M6 screws for the stop strips
• 4 Ø8mm grover washers for the stop strips
• 1 capacitor 12.5 μF
• 1 user manual
• 1 control panel with built-in receiver
• 1 4-button remote control

The REPLACE KIT is for mechanisms for sliding garden gates and is recommended in cases where we want to replace an existing mechanism.

Technical Specifications:

• Maximum door weight: 600kg
• Motor RPM: 1400rpm
• Power consumption of motor: 280Watt
• Operating temperature range: -20°C to +55°C
• Dust and moisture protection rating: IP-44
• Weight of motor: 10Kg
• Dimensions of motor: 237mm x 213mm x 270mm
• Color of motor cover: Black
• Packaging: Carton box
