Next Systems Set Garage Door Motor for Sliding Door for Maximum Weight 600kg
Garage Door Motor Set

Next Systems Set Garage Door Motor for Sliding Door for Maximum Weight 600kg

The Next Systems motor kit automates sliding garage and driveway gates weighing up to 600 kg. The electromechanical mechanism is permanently grease-lubricated, non-reversible and fitted with metal...

The Next Systems motor kit automates sliding garage and driveway gates weighing up to 600 kg. The electromechanical mechanism is permanently grease-lubricated, non-reversible and fitted with metal internal gears. The motor operates at 230 VAC and has a power rating of 280 W.

For a gate with a nominal length of 5 m at a temperature of 20 °C, it supports up to...

See full description See full description
269 00 €
Delivery by Thu, 12 Nov
38,00 €   shipping cost
Sent from Greece
From NextSystems
Greece
20+ pieces
See Garage Door Mechanisms on the page of NextSystems

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Next Systems motor kit automates sliding garage and driveway gates weighing up to 600 kg. The electromechanical mechanism is permanently grease-lubricated, non-reversible and fitted with metal internal gears. The motor operates at 230 VAC and has a power rating of 280 W.

For a gate with a nominal length of 5 m at a temperature of 20 °C, it supports up to 25 opening and closing cycles per hour. The maximum gate leaf speed is 13 m/min, while the motor winding thermal protection activates at 120 °C. The kit includes 4 m of rack, safety photocells and an operating signal light.

  • Motor type: Sliding garage door
  • Maximum gate leaf weight: 600 kg
  • Motor power: 280 W
  • Operating voltage: 230 VAC, single-phase
  • Mechanism: Electromechanical, permanently grease-lubricated and non-reversible
  • Internal gears: Metal
  • Opening and closing cycles per hour: Up to 25 for a gate with a nominal length of 5 m at 20 °C
  • Maximum gate leaf speed: 13 m/min
  • Motor winding thermal protection: 120 °C
  • Duty cycle: S3: 30% at 20 °C, S2: 10 min
  • Gear type: Z17 / m4
  • Limit switches: Mechanical, with microswitches and spring
  • Manual release: Key-operated
  • Operating temperature: From -20 °C to +55 °C
  • Protection rating: IP-44
  • Motor weight: 10 kg
  • Motor dimensions: 237 × 213 × 270 mm, including the gear and excluding the mounting base
  • Motor cover colour: Black

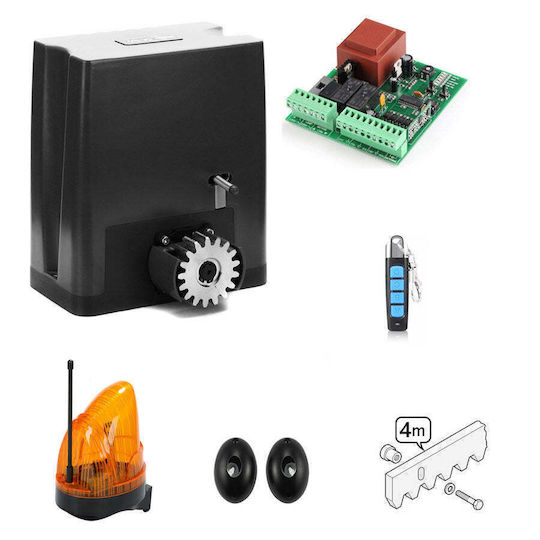

  • Package contents: 1 motor, 1 electronic control panel with built-in receiver, 1 four-button remote control, 4 m of module 4 metal rack with spacers and screws, 2 manual release keys, 1 metal mounting base, 4 galvanised M8 anchor bolts, 8 galvanised Ø8 washers, 8 M8 nuts, 2 metal limit switch activation plates, 4 M6 screws, 4 Ø8 mm spring washers, 1 12.5 μF capacitor, 1 user manual, 1 set of wired safety photocells with transmitter and receiver, 1 operating signal light

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Motor type
Sliding

Motor type

Sliding
Suitable for residential and commercial entrances, when there is available space for opening, as wide as the entrance width.
Maximum Weight
600 kg

Maximum Weight

Describes the maximum weight of the garage door that is suitable for the motor.
Built-in Control Panel
No
Wi-Fi
No

Wi-Fi

Allows remote control and monitoring of the motor via a smartphone app, by connecting it to the home Wi-Fi network.

Set Contents

Motor
1 pcs
Control Panel
1 pcs

Control Panel

1

It regulates and manages the operation of the motor, the commands from the remote controls, and the safety accessories.
Remote Control
1 pcs
Security Beacon
1 pcs

Security Beacon

During motor operation, it flashes indicating that the door is moving. It is used as a safety accessory and where there is low visibility when exiting the vehicle.
Photocells
2 pcs

Photocells

They are used for safe use of the garage door by automatically stopping the motor's movement in case they detect an obstacle.
External Antenna
1 pcs

External Antenna

It enhances the signal range, allowing the use of remote controls from a greater distance. It is usually installed outside of metal shutters, as the metal surface obstructs the signal from going out.
Gear Rack
4 m

Gear Rack

This is a rod with teeth that is used in sliding automations. In combination with the motor gear, it ensures the movement of the garage door (opening and closing).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Next Systems motor kit automates sliding garage and driveway gates weighing up to 600 kg. The electromechanical mechanism is permanently grease-lubricated, non-reversible and fitted with metal internal gears. The motor operates at 230 VAC and has a power rating of 280 W.

For a gate with a nominal length of 5 m at a temperature of 20 °C, it supports up to 25 opening and closing cycles per hour. The maximum gate leaf speed is 13 m/min, while the motor winding thermal protection activates at 120 °C. The kit includes 4 m of rack, safety photocells and an operating signal light.

  • Motor type: Sliding garage door
  • Maximum gate leaf weight: 600 kg
  • Motor power: 280 W
  • Operating voltage: 230 VAC, single-phase
  • Mechanism: Electromechanical, permanently grease-lubricated and non-reversible
  • Internal gears: Metal
  • Opening and closing cycles per hour: Up to 25 for a gate with a nominal length of 5 m at 20 °C
  • Maximum gate leaf speed: 13 m/min
  • Motor winding thermal protection: 120 °C
  • Duty cycle: S3: 30% at 20 °C, S2: 10 min
  • Gear type: Z17 / m4
  • Limit switches: Mechanical, with microswitches and spring
  • Manual release: Key-operated
  • Operating temperature: From -20 °C to +55 °C
  • Protection rating: IP-44
  • Motor weight: 10 kg
  • Motor dimensions: 237 × 213 × 270 mm, including the gear and excluding the mounting base
  • Motor cover colour: Black
  • Package contents: 1 motor, 1 electronic control panel with built-in receiver, 1 four-button remote control, 4 m of module 4 metal rack with spacers and screws, 2 manual release keys, 1 metal mounting base, 4 galvanised M8 anchor bolts, 8 galvanised Ø8 washers, 8 M8 nuts, 2 metal limit switch activation plates, 4 M6 screws, 4 Ø8 mm spring washers, 1 12.5 μF capacitor, 1 user manual, 1 set of wired safety photocells with transmitter and receiver, 1 operating signal light
