Next Systems Set Garage Door Motor for Sliding Door for Maximum Weight 600kg
Garage Door Motor Set

Next Systems Set Garage Door Motor for Sliding Door for Maximum Weight 600kg

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product code (SKU): DKC600-WIZ-SET-7-RED
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent...

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product code (SKU): DKC600-WIZ-SET-7-RED
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent lubrication with grease, Non-reversible
  • Openings and closings per hour: for a door of indicative length 5 m, at 20°C: up to 25
  • Operating voltage of motor: 230VAC...
See full description See full description
Review the product
Product report

Description

Description

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product code (SKU): DKC600-WIZ-SET-7-RED
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent lubrication with grease, Non-reversible
  • Openings and closings per hour: for a door of indicative length 5 m, at 20°C: up to 25
  • Operating voltage of motor: 230VAC (single-phase)

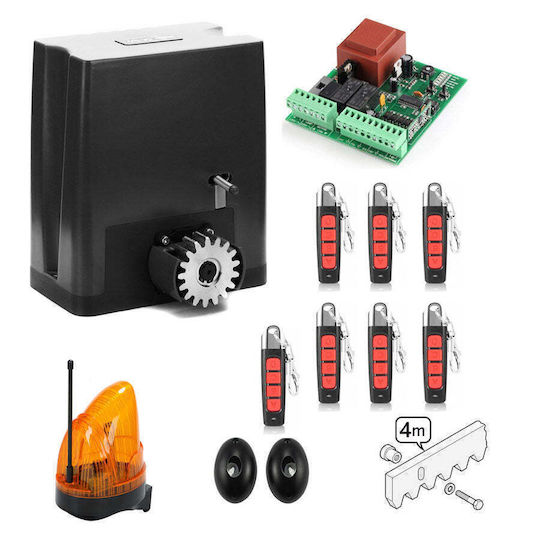

Includes:

  • 1 DKC600 motor
  • 2 release keys (for manual operation)
  • 1 metal support bracket
  • 4 galvanized M8 anchors
  • 8 galvanized Ø8 washers
  • 8 M8 nuts
  • 2 metal plates (stop brackets) for activating the limit switches
  • 4 M6 screws for the stop brackets
  • 4 Ø8mm grover washers for the stop brackets
  • 1 capacitor 12.5 μF
  • 1 user manual
  • 1 electronic control board with integrated receiver
  • 7 4-button remote controls
  • 1 set of safety photoelectric cells (wired: transmitter & receiver)
  • 1 operation notification light

Metal rack module 4 (toothed rule) with spacers and screws included in a separate package measuring 1210mm x 60mm x 30mm.

  • Technical Specifications:
  • Supply voltage: 230VAC
  • Motor absorbed power: 280Watt
  • Supply current: 1.3A
  • Motor speed: 1400rpm
  • Capacitor capacity: 12.5 μF
  • Maximum door leaf speed: 13m/min
  • Thermal protection of motor winding: 120°C
  • Degree of protection against dust and moisture: IP-44
  • Motor weight: 10Kg
  • Motor dimensions: 237mm x 213 mm x 270 mm
  • Cover color of motor: Black

The DKC600 motor is suitable for most residential sliding gates.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Motor type
Sliding

Motor type

Sliding
Suitable for residential and commercial entrances, when there is available space for opening, as wide as the entrance width.
Maximum Weight
600 kg

Maximum Weight

Describes the maximum weight of the garage door that is suitable for the motor.
Built-in Control Panel
No

Set Contents

Motor
1 pcs
Control Panel
1 pcs
Remote Control
7 pcs
Security Beacon
1 pcs

Security Beacon

During motor operation, it flashes indicating that the door is moving. It is used as a safety accessory and where there is low visibility when exiting the vehicle.
Photocells
2 pcs

Photocells

They are used for safe use of the garage door by automatically stopping the motor's movement in case they detect an obstacle.
External Antenna
1 pcs

External Antenna

It enhances the signal range, allowing the use of remote controls from a greater distance. It is usually installed outside of metal shutters, as the metal surface obstructs the signal from going out.
Gear Rack
4 m

Gear Rack

This is a rod with teeth that is used in sliding automations. In combination with the motor gear, it ensures the movement of the garage door (opening and closing).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Mechanism for the automation of sliding gate and garage doors up to 600kg.

  • Product code (SKU): DKC600-WIZ-SET-7-RED
  • Maximum leaf weight: 600kg
  • Motor power: 280Watt
  • Type of mechanism: Permanent lubrication with grease, Non-reversible
  • Openings and closings per hour: for a door of indicative length 5 m, at 20°C: up to 25
  • Operating voltage of motor: 230VAC (single-phase)

Includes:

  • 1 DKC600 motor
  • 2 release keys (for manual operation)
  • 1 metal support bracket
  • 4 galvanized M8 anchors
  • 8 galvanized Ø8 washers
  • 8 M8 nuts
  • 2 metal plates (stop brackets) for activating the limit switches
  • 4 M6 screws for the stop brackets
  • 4 Ø8mm grover washers for the stop brackets
  • 1 capacitor 12.5 μF
  • 1 user manual
  • 1 electronic control board with integrated receiver
  • 7 4-button remote controls
  • 1 set of safety photoelectric cells (wired: transmitter & receiver)
  • 1 operation notification light

Metal rack module 4 (toothed rule) with spacers and screws included in a separate package measuring 1210mm x 60mm x 30mm.

  • Technical Specifications:
  • Supply voltage: 230VAC
  • Motor absorbed power: 280Watt
  • Supply current: 1.3A
  • Motor speed: 1400rpm
  • Capacitor capacity: 12.5 μF
  • Maximum door leaf speed: 13m/min
  • Thermal protection of motor winding: 120°C
  • Degree of protection against dust and moisture: IP-44
  • Motor weight: 10Kg
  • Motor dimensions: 237mm x 213 mm x 270 mm
  • Cover color of motor: Black

The DKC600 motor is suitable for most residential sliding gates.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Motor type
Sliding

Motor type

Sliding
Suitable for residential and commercial entrances, when there is available space for opening, as wide as the entrance width.
Maximum Weight
600 kg

Maximum Weight

Describes the maximum weight of the garage door that is suitable for the motor.
Built-in Control Panel
No

Set Contents

Motor
1 pcs
Control Panel
1 pcs
Remote Control
7 pcs
Security Beacon
1 pcs

Security Beacon

During motor operation, it flashes indicating that the door is moving. It is used as a safety accessory and where there is low visibility when exiting the vehicle.
Photocells
2 pcs

Photocells

They are used for safe use of the garage door by automatically stopping the motor's movement in case they detect an obstacle.
External Antenna
1 pcs

External Antenna

It enhances the signal range, allowing the use of remote controls from a greater distance. It is usually installed outside of metal shutters, as the metal surface obstructs the signal from going out.
Gear Rack
4 m

Gear Rack

This is a rod with teeth that is used in sliding automations. In combination with the motor gear, it ensures the movement of the garage door (opening and closing).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
