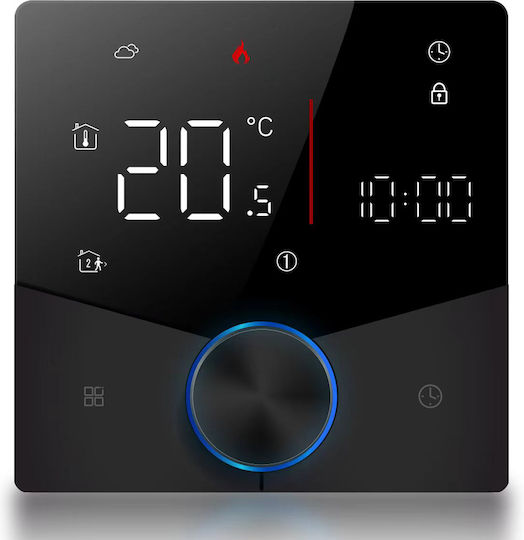

The BHT-009GBLW digital room thermostat connects to a smartphone via Wi-Fi and the Smart Life or Tuya apps, allowing you to control the temperature remotely. It is compatible with oil boilers and designed for use in residential, commercial and industrial spaces.

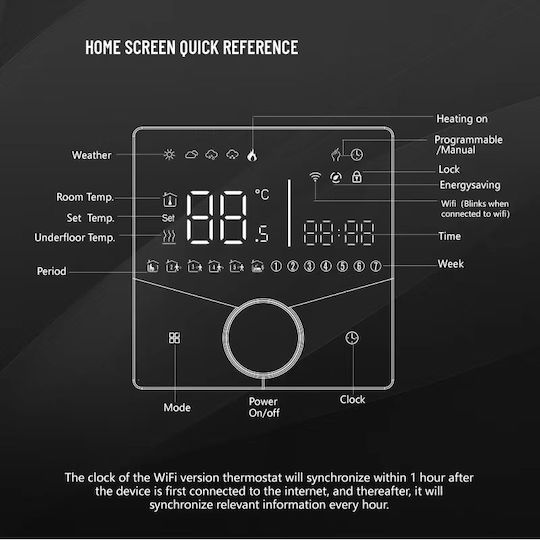

It is controlled using a rotary knob and touch buttons, while the display shows the temperature readings. It is designed for recessed installation.
- Type: Digital room thermostat
- Smart functionality: Yes
- Connectivity: Wi-Fi
- Apps: Smart Life, Tuya
- Compatibility: Oil boilers
- Use: Residential, commercial and industrial
- Installation: Recessed
- Power supply: Mains, 95–240 VAC, 50–60 Hz
- Programming: Non-programmable
- Temperature setting range: 5–35 °C
- Room temperature range: 5–70 °C
- Temperature display range: 5–70 °C
- Temperature resolution: 0.1 °C
- Accuracy: ±1 °C
- Sensor: NTC-3950, 10K
- Current load: 5 A
- Power consumption: <1.5 W
- Housing material: PC + ABS, flame-retardant
- Protection rating: IP20
- Ambient temperature: 0–45 °C
- Ambient humidity: 5–95% RH, non-condensing
- Storage temperature: 0–45 °C
- Timing error: <1%
- Dimensions: 88 × 88 × 12.4 mm
- Width: 6 cm
- Installation box: Square 86 × 86 mm or round European-style 60 mm
- Wire terminals: 2 × 1.5 mm² or 1 × 2.5 mm²
- Package contents: Thermostat, screws, user manual
Manufacturer
OEM- Product Number
- BHT-009GBLW
Dimensions
- Type
- Digital
- Placement
- Wall-Embedded
- Power Source
- Electric Power
- Width
- 6 cm
- Height
- -
- Length
- -
Features & Functions
- Touch Screen
- No
- Smart
- Yes
- Cooling-Heating
- No
- Temperature Range
- 5 - 35 °C
- Programming
- Non-Programmable
- Temperature Gradation
- 0.1 °C
Wireless Attributes
- Wi-Fi
- Yes
- Bluetooth
- No
- ZigBee
- No
- Z-Wave
- No
- RF
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
