GRsistemi Garage Door Motor Set for Counterweight Door up to 250kg Left Direction
Garage Door Motor Set

GRsistemi Garage Door Motor Set for Counterweight Door up to 250kg Left Direction

The GRsistemi motor kit automates a single-leaf swing garage door with a leaf weighing up to 250 kg and measuring up to 5 m wide. It includes a linear electromechanical actuator with permanent grease...

The GRsistemi motor kit automates a single-leaf swing garage door with a leaf weighing up to 250 kg and measuring up to 5 m wide. It includes a linear electromechanical actuator with permanent grease lubrication and an electronic control board in a watertight plastic enclosure. The motor operates on a 230 Vac power supply and has a useful piston stroke of 60...

See full description See full description
320 00 €
Delivery by Thu, 12 Nov
38,00 €   shipping cost
Sent from Greece
From NextSystems
Greece
20+ pieces
See Garage Door Mechanisms on the page of NextSystems

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The GRsistemi motor kit automates a single-leaf swing garage door with a leaf weighing up to 250 kg and measuring up to 5 m wide. It includes a linear electromechanical actuator with permanent grease lubrication and an electronic control board in a watertight plastic enclosure. The motor operates on a 230 Vac power supply and has a useful piston stroke of 60 cm.

The control board supports automatic closing, motor force adjustment, and connections for an electric lock, warning light, and safety photocells. In the event of a power outage, the actuator can be disengaged with a key for manual operation.

  • Door type: Single-leaf swing
  • Direction: Left-hand
  • Actuator type: Linear, electromechanical, permanently grease-lubricated, non-reversible
  • Maximum door leaf weight: 250 kg
  • Maximum door leaf width: 5 m
  • Maximum width without an electric lock: 2.5 m
  • Maximum opening angle: 120°
  • Useful piston stroke: 60 cm
  • Power supply: 230 Vac, single-phase
  • Motor power: 330 W
  • Power supply current: 0.9 A
  • Capacitor capacity: 8 μF
  • Maximum thrust: 2200 N
  • Maximum duty cycle: 35% - S3
  • Opening/closing cycles: Up to 20 per hour at 20 °C
  • Motor speed: 1400 rpm
  • Operating temperature: From -25 °C to 60 °C
  • Winding thermal protection: 150 °C
  • Thermal reset time: 5 min
  • Protection rating: IP43
  • Housing material: Aluminum
  • Housing color: Black
  • Maximum linear speed: 0.018 m/sec
  • Opening/closing time: 33 sec
  • Minimum hinge distance: 970 mm
  • Maximum hinge distance: 1570 mm
  • Disengagement: Key-operated
  • Control board: 1 unit, in a watertight plastic enclosure
  • Remote controls: 2 wireless, 433.92 MHz frequency
  • Remote control buttons: 3
  • Remote control range: Approx. 50 m
  • Remote control coding: 12-bit fixed code, Autotech 24-bit, or KeeLoq rolling code
  • Maximum number of remote controls: 250
  • Safety photocells: Wired, with transmitter and receiver
  • Automatic closing: Supported
  • Motor force adjustment: Supported
  • Electric lock connection: Supported
  • Warning light connection: 230 Vac or 24 Vdc, flashing operation
  • Lighting connection: 230 Vac, steady operation
  • Photocell connections: Internal and external
  • Slow stop: Supported
  • Learning procedure: Easy and Normal
  • LED diagnostics: Supported
  • Control board technology: SMD

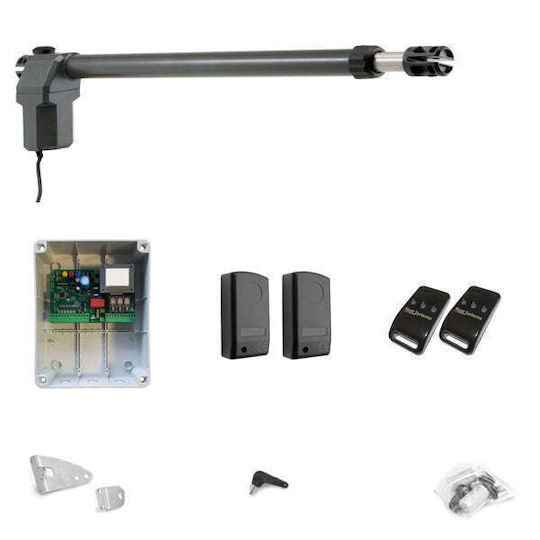

  • Package contents: 1 motor, 1 control board, 2 remote controls, safety photocells, mounting brackets and pins, 1 8 μF capacitor, 1 disengagement key, installation instructions in Greek
  • CE compliance: Motor and circuit board
  • Manufacturers: GR SISTEMI (motor), AUTOTECH (circuit board)
  • Origin: Motor from Italy, photocells from Greece

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Motor type
Counterweight

Motor type

Counterweight
It is flexible and practical in spaces that have enough depth for opening their leaves.
Maximum Weight
250 kg

Maximum Weight

Describes the maximum weight of the garage door that is suitable for the motor.
Maximum Door Length
5 m

Maximum Door Length

Indicates the maximum door length or width that the motor can safely operate.
Built-in Control Panel
No
Wi-Fi
No

Wi-Fi

Allows remote control and monitoring of the motor via a smartphone app, by connecting it to the home Wi-Fi network.

Set Contents

Motor
1 pcs
Control Panel
1 pcs

Control Panel

1

It regulates and manages the operation of the motor, the commands from the remote controls, and the safety accessories.
Remote Control
2 pcs
Security Beacon
1 pcs

Security Beacon

During motor operation, it flashes indicating that the door is moving. It is used as a safety accessory and where there is low visibility when exiting the vehicle.
External Antenna
1 pcs

External Antenna

It enhances the signal range, allowing the use of remote controls from a greater distance. It is usually installed outside of metal shutters, as the metal surface obstructs the signal from going out.
Gear Rack
5 m m

Gear Rack

This is a rod with teeth that is used in sliding automations. In combination with the motor gear, it ensures the movement of the garage door (opening and closing).

Important information
