Electric Car Chargers

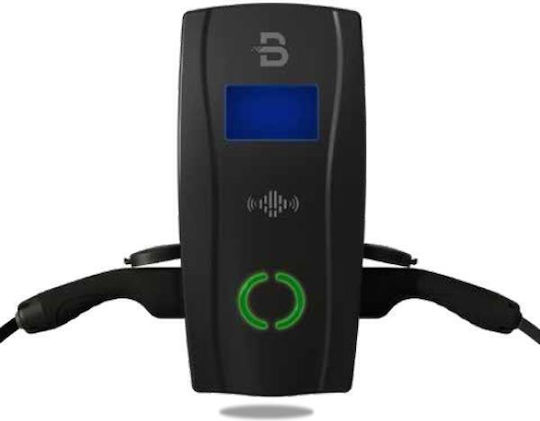

Eurolamp BENY Wall Mounted Three-Phase Electric Car Charger 2x22kW with Built-in Cable Type 2

The Eurolamp BENY three-phase wall-mounted charger has two charging points, each with a power output of 22 kW, and integrated 5 m Type 2 cables. It supports RFID card access and connects via Wi‑Fi,...

The Eurolamp BENY three-phase wall-mounted charger has two charging points, each with a power output of 22 kW, and integrated 5 m Type 2 cables. It supports RFID card access and connects via Wi‑Fi, Bluetooth or Ethernet. It operates using the OCPP1.6J protocol and the Z-BOX app.

  • Mounting: Wall-mounted
  • Number of phases: Three-phase
  • Charging power: 2 22 kW
  • ...
See Description & Specifications See Description & Specifications

1976 42 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Aplada 4.1 (54)
Greece
5+ pieces
See Car Electronics on the page of Aplada

Learn more about invoicing

Description & Specifications

The Eurolamp BENY three-phase wall-mounted charger has two charging points, each with a power output of 22 kW, and integrated 5 m Type 2 cables. It supports RFID card access and connects via Wi‑Fi, Bluetooth or Ethernet. It operates using the OCPP1.6J protocol and the Z-BOX app.

  • Mounting: Wall-mounted
  • Number of phases: Three-phase
  • Charging power: 2 × 22 kW
  • Rated voltage: 400 Vac
  • Rated current: 32 A
  • Frequency: 50–60 Hz
  • Charging cables: 2 integrated cables, each 5 m long
  • Connector type: Type 2
  • Access control: RFID
  • Connectivity: Wi‑Fi, Bluetooth and Ethernet
  • Communication protocol: OCPP1.6J
  • App: Z-BOX
  • Meter: 2 MID meters
  • Leakage protection: Type A with integrated 6 mA DC leakage sensor
  • Protections: Leakage, overcurrent, grounding, overvoltage, undervoltage, contactor welding, reverse neutral and phase connection, overheating and CP signal fault
  • Protection rating: IP55
  • Operating temperature: -25 °C to 50 °C
  • Dimensions: 470 × 225.3 × 177.3 mm
  • Weight: 9.8 kg
  • Colour: Black

Manufacturer

Placement
Wall Mounted
Phase Capacity
Three-Phase
Charging Power
2x22 kW
Current intensity
32 A
Built-in Cable
Yes
Charging Port
Type 2
Cable Length
-
Screen
-
Dynamic Load Balancing
-
WiFi
Yes
Bluetooth
Yes
RFID Access Control
Yes
Protection Certification
IP55
Durability
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
