Description
Specifications

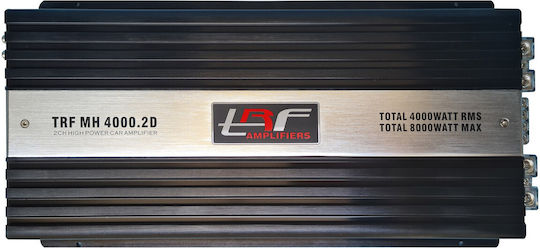

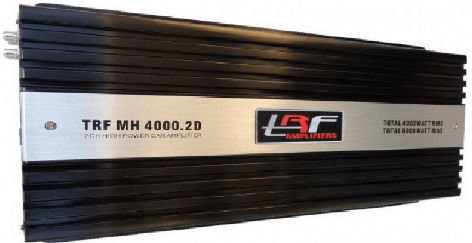

Model: TRF MH 4000.2D
Power Capability:
- RMS at 4 ohms: 700W x 2
- RMS at 2 ohms: 1200W x 2
- RMS at 1 ohm: 2000W x 2
- RMS at 4 ohms mono: 2400W x 1
- RMS at 2 ohms mono: 4000W x 1
- MAX power at 4 ohms: 1400W x 2
- MAX power at 2 ohms: 2400W x 2
- MAX power at 1 ohm: 4000W x 2
- MAX power at 4 ohms mono: 4800W x 1
- MAX power at 2 ohms mono: 8000W x 1
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 97dB
Damping Factor: 400
Impedance: 1 ohm stereo or 2 ohms mono
Input Sensitivity: 0.2V to 6V

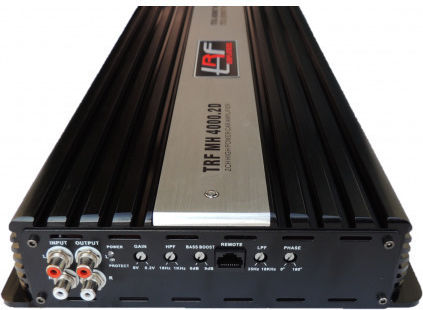

Crossover: 18dB oct/slope
- Bandpass Filter
- High Pass Filter: 10Hz to 1KHz
- Low Pass Filter: 35Hz to 10KHz
Remote Controller: CONTROL: VOLTAGE/TEMP - PWR, PRT, CLIP

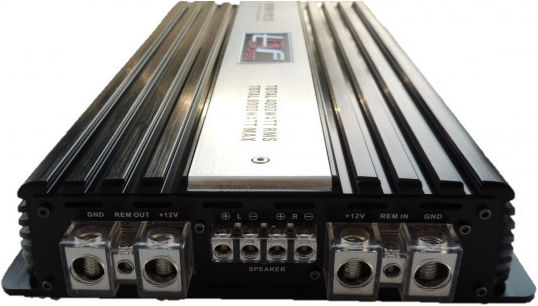

Power & Speaker Terminals: 2X0 gauge
Circuit Board: 2 oz copper
Heavy Duty Heatsink
3-Way Protection: DC offset, Thermal, Speaker short
BURRBROWN OP AMP IC
Handmade Power Transformers: 4
Tested Voltage & THD: 14.4V & less than 1% THD
Operating Voltage: 8.5V to 16V
Fuse Rating: 320 AMPER
Dimensions: 520X253X64 mm
- Product Number
- MH-4000.2D
- Number of Channels
- 2 Channels
- Output Power (1 Ohm)
- 1000 watt / channel
- Amplifier class
- D
