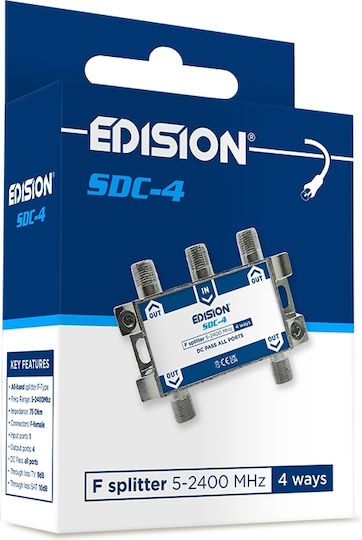

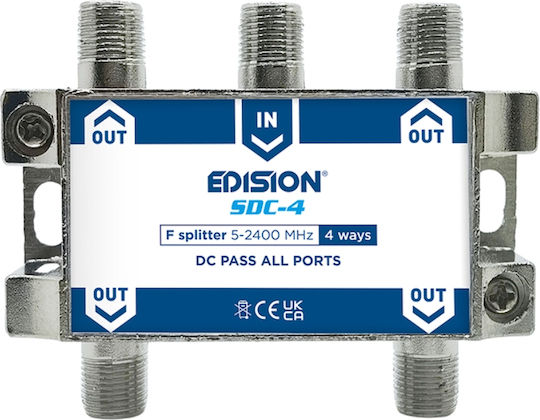

The Edision SDC-4 splitter distributes a TV signal from one input to 4 outputs and is suitable for terrestrial and satellite installations. The female F connectors allow DC power to pass from all outputs to the input, supplying equipment such as active dipoles or masthead amplifiers.

The one-piece, die-cast zinc housing is nickel-plated for corrosion protection and electromagnetic shielding. The grounding terminals are secured with a screw.

• Type: All-band TV signal splitter
• Inputs: 1
• Outputs: 4
• Connectors: Female F
• Frequency range: 5–2400 MHz
• Impedance: 75 Ω
• Insertion loss, terrestrial signal: 9 dB
• Insertion loss, satellite signal: 10 dB
• IN/OUT insertion loss, maximum: 5–40 MHz: 8.0 dB, 471–1000 MHz: 9.0 dB, 1001–1350 MHz: 10 dB, 1351–1750 MHz: 10.5 dB, 2051–2400 MHz: 12 dB
• OUT/OUT isolation, minimum: 5–40 MHz: 18 dB, 471–1000 MHz: 21 dB, 1001–1350 MHz: 21 dB, 1351–1750 MHz: 20 dB, 2051–2400 MHz: 20 dB
• DC power pass-through: From all outputs to the input, 12 V DC / 24 V DC, up to 500 mA
• Dimensions: 72 × 58 × 22 mm
• Package contents: Splitter, mounting screws
