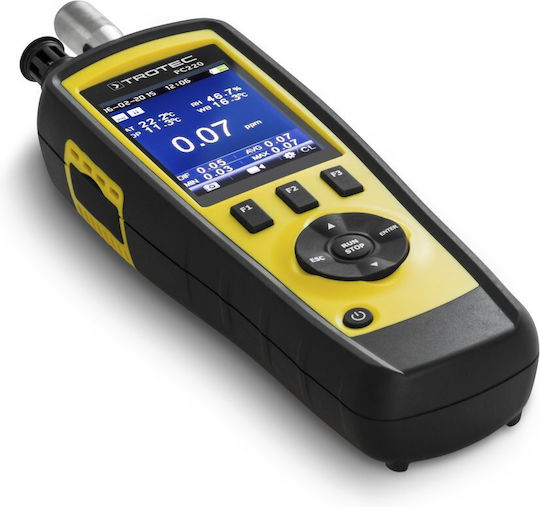

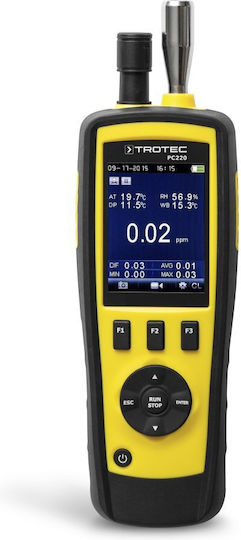

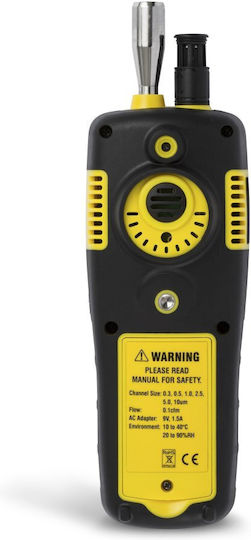

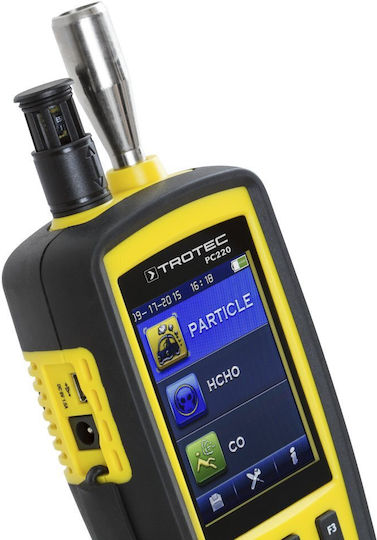

The Trotec PC220 gas meter measures the concentrations of carbon monoxide and formaldehyde in the air. It also measures particles across six size channels, from 0.3 μm to 10.0 μm, as well as relative humidity and various air temperatures.
The colour LCD is complemented by visual and audible alarms. The device captures photos and videos, stores up to 5,000 measurements in its internal memory and connects to a computer via USB.
- Gas type: Carbon monoxide (CO)
- Gas detection: Carbon monoxide and formaldehyde
- Particle measurement channels: 6
- Particle sizes: 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm
- Particle measurement modes: Concentration, cumulative, differential
- Measured parameters: Relative humidity, air temperature, dew point temperature, wet-bulb temperature
- Display: Colour LCD
- Alarm: Visual and audible
- Functions: Photo, video, maximum and minimum measurement, average measurement, hold reading, adjustable automatic display and/or instrument shut-off
- Internal memory: 5,000 measurements
- Memory expansion: MicroSD card up to 16 GB (optional)
- Connection: USB
- Standard: ISO 21501-4
- Dimensions: 57 x 75 x 240 mm
- Weight: 570 g
- Type of Gas
- CO
