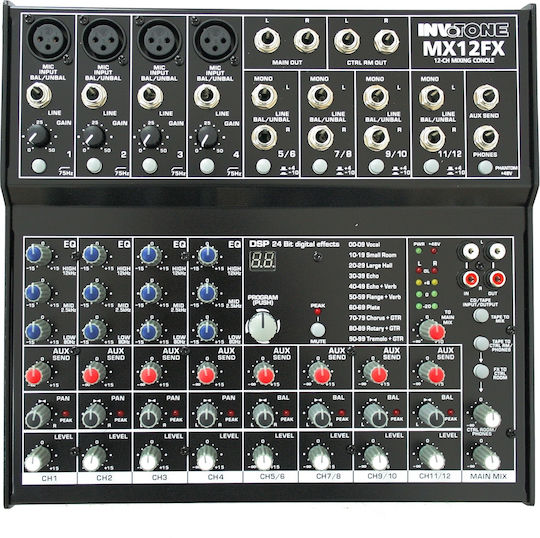

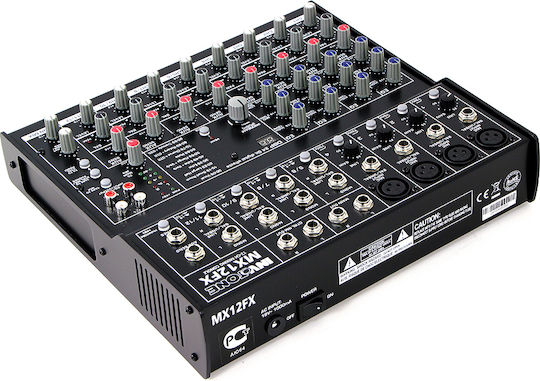

Mixing console with 12 independent channels (4 mono input - 4 stereo input - 3-band EQ on all channels).

Features:

• 2-Track IN/OUT
• 75Hz Low cut filter
• Effect unit with 24-bit DSP
• 1 POST-fader AUX
• GAIN control
• 48V Phantom Power for condenser microphones
• 4 x XLR microphone inputs
• 4 x Line-in jack 6.3 mm
• 4 x 6.3 mm stereo jack inputs mono
• 1 x stereo RCA TAPE input
• 1 x stereo AUX Return 6.3mm jack
• 1 x Jack 6.3 mm headphone output
• 1 x output Main Out jack stereo 6.3 mm
• 1 x 6.3mm CTRL RM output
• 1 x Stereo RCA Tape output
• 1 x AUX send output mono 6.3mm jack
• Control for selecting preset effects
• Display for showing the preset number
• Mute button for disabling the effect
• Peak LED for overload indication
• 3-band EQ on mono channels
• Gain for mono channels with control
• 75 Hz Low-cut filter on each mono channel
• Sensitivity control for stereo channels +4 / -10
• Signal routing to effects unit
• Level and Balance / Pan adjustable for each channel
• Tape switch for CTRL RM / Phones and Tape for Mix
• Switch FX for CTRL Room to listen to AUX external effects
• Button for activating phantom power
• LED indicator for phantom power
• LED master volume display
• Peak LED display
• On / off switch on the device

Impedance (main output): 120 ohms

Power supply: 230V, 50Hz via AC 18V, 1000mA adapter (included)

Dimensions: 25 x 5.3 x 26.5 cm (WxHxD)

Weight: 1.90 kg
