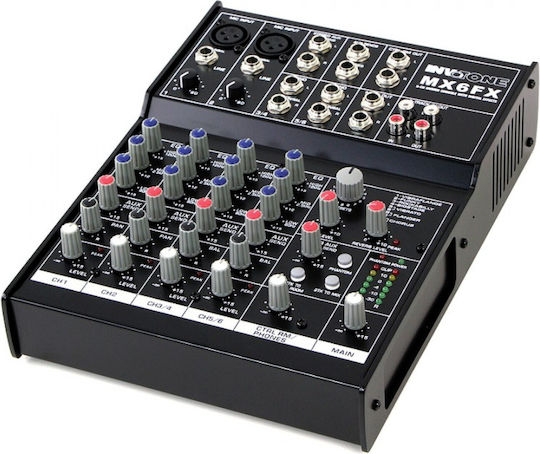

Invotone Mixing Console with 6 Independent Channels MX6FX

• 2 mono input - 2 stereo input
• Three-band EQ on all channels
• 2-Track IN/OUT
• 1 AUX GAIN control
• Digital effect unit with 24 bit DSP and 16 digital effect Presets
• 2 microphone channels with 48V Phantom Power for condenser microphones

FEATURES

• EQ
  • Mono channels
    • High : 15dB @12 kHz
    • Mid : 15dB @2.5 kHz
    • Low : 15dB @80 Hz
  • Stereo channels
    • High : 15dB @12 kHz
    • Mid : 15dB @2.5 kHz
    • Low : 15dB @80 Hz
• PEAK Display
  • Channels : +18dBu
  • VU Meters : +19dBu
• VU Meter
  • Main Left and Right (4-Segmente) : Clip (+19), +6,0, -20 (0 LED=0 dBu)
  • Microphone Input : 2.6 kΩ
  • Line Input : 10 kΩ
  • CD/Tape Input : 20 kΩ
• Impedances
  • Main Outputs : 120 Ω
  • Ctrl Room, Aux Sends : 120 Ω
  • Tape Output : 1 kΩ
  • Phones Outputs : 120 Ω
• FX Section
  • 16 Modulations-Effects + separate Hall
• Phantom Power
  • XLR-3-31 type balanced : +48V
• Power Supply
  • Adaptor : AC18V, 1000mA
• Current Consumption
  • ALL LOAD : 15W
• Dimensions
  • ( WxDxH ) 250.5 x 182 x 53 mm
• Weight
  • 1.48 kg
