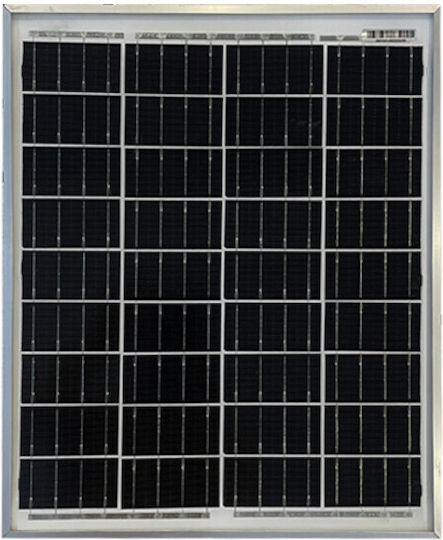

Epsolar M-20w Monocrystalline Solar Panel 20W 12V 380x310x17mm

Name: Epsolar M-20w Monocrystalline Solar Panel 20W 12V 380x310x17mm
Brand: Epsolar
SKU: 49208949
Price: 25.0 EUR
Availability: InStock
Rating: 4.8 (5 reviews)

The M-20w solar panel from Epsolar is monocrystalline, which means it is made from a single silicon crystal and is more efficient than a polycrystalline one. Because the cell consists of a single...

The M-20w solar panel from Epsolar is monocrystalline, which means it is made from a single silicon crystal and is more efficient than a polycrystalline one. Because the cell consists of a single crystal, the electrons that generate a flow of electrical energy have more space to move.

See full description See full description

25 00 €

Delivery by Thu, 25 Jun

14,00 € shipping cost

Sent from Greece

From Jotronic

Greece

20 pieces

See Photovoltaics & Wind Turbines on the page of Jotronic

Description

Features

Nominal Power: 20W
Cell Efficiency: 22.6%
Maximum Power Current: 1.12A
Maximum Power Voltage: 17.9V
Open Circuit Voltage: 21.9V
Short Circuit Voltage: 1.19A
Maximum System Voltage: 700V
Current Tolerance: 0-+5W

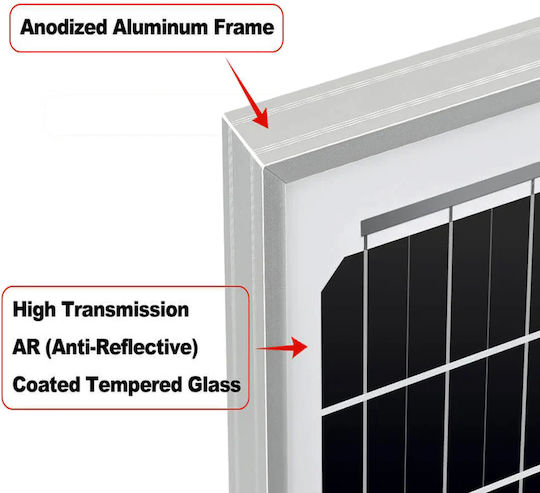

Panel Construction: Aluminum Frame / Black Anodized Aluminum Alloy

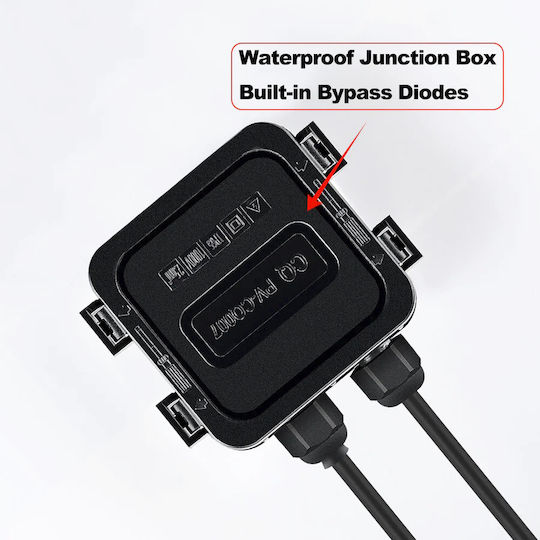

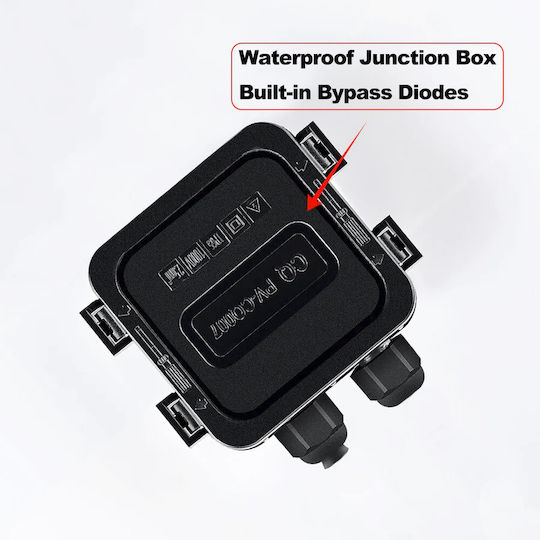

Junction Box Waterproofing: ≥IP67
Cell: 70 x 35
Operating Temperature: -45~+80℃
Panel Dimensions: 380 x 310 x 17mm
Weight: 1.3kg

Manufacturer

Epsolar - Solar Panels Epsolar

See full description

Specifications

Technical Specifications

Type: Monocrystalline

Maximum Power: 20 W

Flexible: No

Maximum Voltage: 12 V

Cells: 36 Cells

Dimensions

Length: 380 mm

Width: 310 mm

Thickness: 17 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
