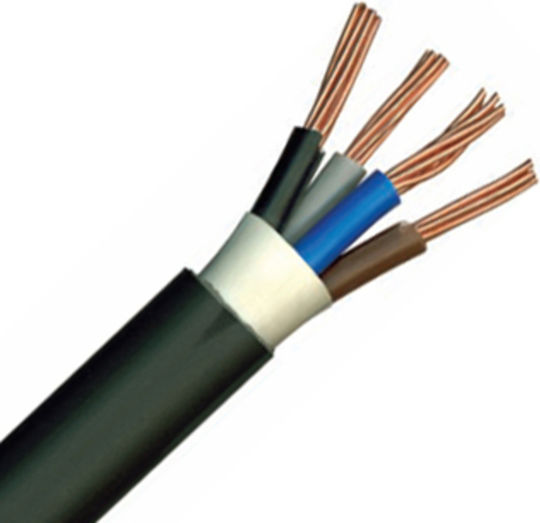

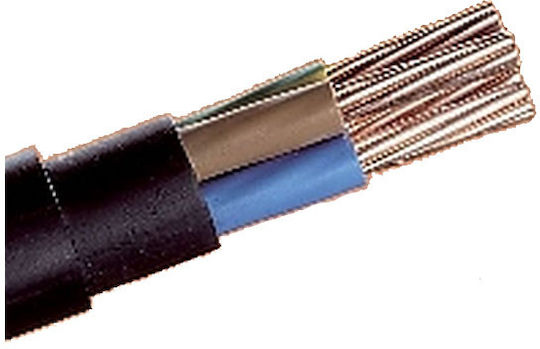

Nexans Power Cord Type NYY with Cable Properties 5x10mm² in Black Colour 1m

Name: Nexans Power Cord Type NYY with Cable Properties 5x10mm² in Black Colour 1m 13001126
Brand: Nexans
SKU: 49266726
Price: 17.11 EUR
Availability: InStock
Rating: 4.7 (6 reviews)

Technical specifications:

Conductor material: copper
Conductor flexibility: multi-stranded, class 2
Insulation: PVC
Number of conductors: 5+1
Outer diameter: 21mm

Technical specifications:

Conductor material: copper
Conductor flexibility: multi-stranded, class 2
Insulation: PVC
Number of conductors: 5+1
Outer diameter: 21mm

See full description See full description

17 11 €

Delivery by Mon, 10 Aug

14,00 € shipping cost

Sent from Greece

From eDendrinos 4.9 (5)

4.9 (5 reviews)

Greece

20+ pieces

See Electrical Equipment on the page of eDendrinos

Description

Technical specifications:

Conductor material: copper
Conductor flexibility: multi-stranded, class 2
Insulation: PVC
Number of conductors: 5+1
Outer diameter: 21mm
Voltage drop, 3 phases: 3.1V/A.km
Weight: 832kg/km
Maximum allowable current: 75A
Maximum conductor resistance at continuous current, 20° C: 1.83Ohm/km
Cable cross-section: 10mm² + 1.5mm²
Number of cables: 5

Manufacturer

Nexans - Power Cords Nexans

See full description

Specifications

Cable Properties: 5x10 mm²

Type: NYY

Flexible: No

With Plug: No

With Switch: No

Colour: Black

Length: 1 m

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
