The EDISION 26-01-0001 set includes a masthead amplifier for terrestrial digital channels and a compatible 24 V power supply. The amplifier connects to a UHF antenna and features adjustable gain and a 5G LTE interference rejection filter. The power supply powers the amplifier via coaxial cable and has two RF outputs for TVs.

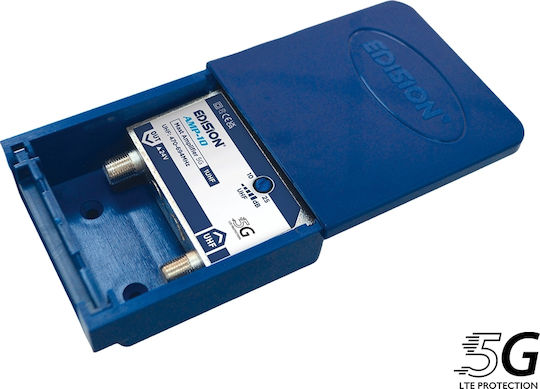

• Type: Masthead amplifier and power supply set
• Amplifier inputs: 1 UHF
• UHF reception frequency range: 470–694 MHz
• Adjustable UHF gain: 10–25 dB
• Interference filter: 5G LTE rejection, <20 dB
• Maximum amplifier output level: 107 dBμV
• Noise figure: 4 dB
• Impedance: 75 Ohm
• Amplifier power supply: 24 V DC
• Amplifier power consumption: 60 mA
• Amplifier installation: Indoors or outdoors
• Amplifier mounting: On a mast or wall
• Amplifier connections: F-type female connector
• Amplifier output: 1 RF to a compatible 24 V power supply
• Amplifier housing material: Metal
• Amplifier dimensions with housing: 78 × 85 × 42 mm
• Amplifier weight: 0.12 kg
• Amplifier housing color: Blue

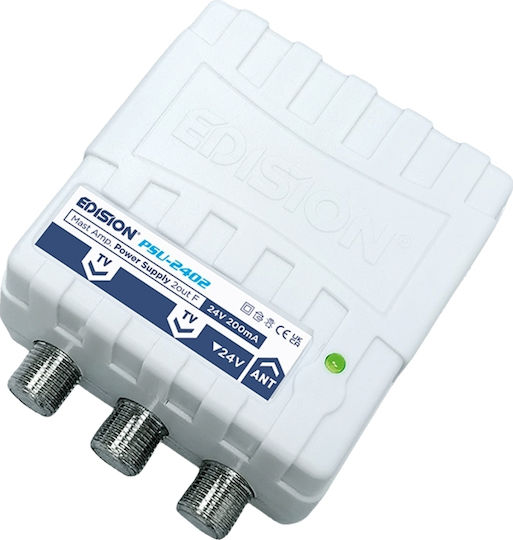

• Power supply pass-through frequency range: 5–862 MHz
• Power supply input: AC 100–240 V, 50/60 Hz, 2-pin EU plug
• Power supply output: DC 24 V, 200 mA
• Power supply RF inputs: 1 ANT with 24 V DC power
• Power supply RF outputs: 2 TV
• Power supply insertion loss: 4.5 dB
• Power supply installation: Indoors only, on a horizontal or vertical surface
• Power supply connections: F-type female connector
• Power supply operating temperature: 0 °C to +50 °C
• Power supply storage temperature: -20 °C to +70 °C
• Power supply operating humidity: 10% to 85% RH, non-condensing
• Power supply dimensions: 57 × 80 × 33 mm
• Power supply weight: 0.14 kg
• Power supply color: White

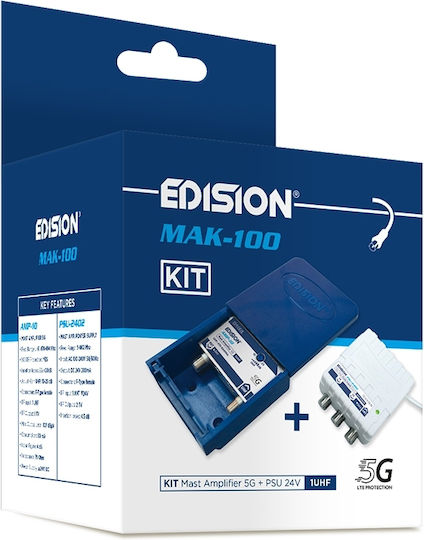

• Package contents: AMP-10 amplifier, outdoor housing, PSU-2402 power supply, cable tie, plastic adjustment screwdriver, 2 sets of mounting screws and wall plugs, user manual in GR/EN/DE/ES/IT/FR
